第一章

公用函数

公用函数

ddtrns.m Provided by 张聪玮 @2022-04-14
1
2
3
4
5
6
7
function y=ddtrns(T0,t)
    if t>T0
        y=0;
    else
        y=-1/2*(pi/T0)^2*sin(pi*(t/T0-1/2));
    end
end
dtrns.m Provided by 张聪玮 @2022-04-14
1
2
3
4
5
6
7
function y=dtrns(T0,t)
    if t>T0
        y=0;
    else
        y=pi/(2*T0)*cos(pi*(t/T0-1/2));
    end
end
s.m Provided by 张聪玮 @2022-04-14
1
2
3
4
5
6
7
function y=s(t,T0)
    if t<=T0
        y=sign(t);
    else
        y=0;
    end
end
trns.m Provided by 张聪玮 @2022-04-14
1
2
3
4
5
6
7
function y=trns(T0,t)
    if t>T0
        y=1;
    else
        y=1/2*(1+sin(pi*(t/T0-1/2)));
    end
end

1.1节

1.1节

图1-1-4
图1-1-4

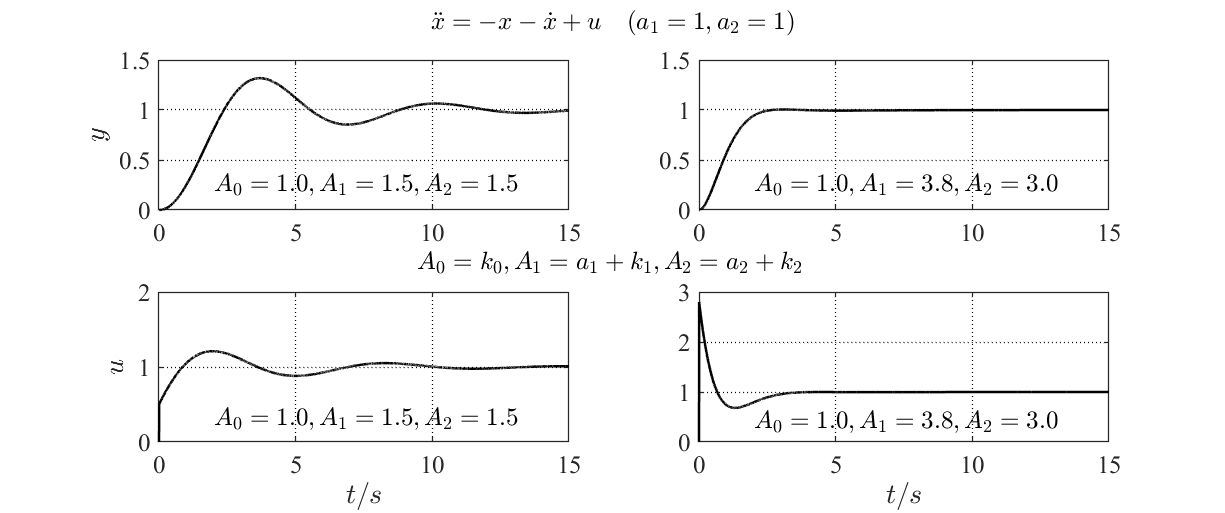

图1-1-4 Provided by 张聪玮 @2022-04-14
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
%二阶振荡环节，传递函数W(s)=1/(s^2+a2*s+a1)
%A0=k0,A1=k1+a1,A2=k2+a2,b=a1
clc,clear,clf
h=0.001;T=15;N=T/h;
n=1:N;t=n*h;
v0=1;
a1=1;a2=1;
x1=zeros(1,N);x2=zeros(1,N);
e=zeros(1,N);De=zeros(1,N);e0=zeros(1,N); %误差，误差的微分，误差的积分
e(1)=v0(1);De(1)=0;e0(1)=0;

%% 第一组增益
k0=1;k1=0.5;k2=0.5;
for i=2:N-1
    e(i)=v0-x1(i); %误差
    De(i)=(e(i)-e(i-1))/h; %误差的微分（差分）
    e0(i)=e0(i-1)+h*e(i); %误差的积分
    u(i+1)=k1*e(i)+k0*e0(i)+k2*De(i);

    x1(i+1)=x1(i)+h*x2(i);
    x2(i+1)=x2(i)+h*(-a1*x1(i)-a2*x2(i)+u(i+1));
    y(i+1)=x1(i+1);
end
t(N)=N*h;
subplot(221);plot(t,y,'k','LineWidth',1.5)
% xlabel('$t/s$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15); % 标注坐标轴
ylabel('$y$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15);
axis([0,15,0,1.5]); % 设置坐标轴上下限
axis_h=gca;  % 当前轴的句柄
set(axis_h,'Fontname','Times New Roman','Fontsize',15,'LineWidth',0.8)
set(gcf,'Position',[200,162,980,410]); % 设置图片大小
grid on;set(gca,'GridLineStyle',':','GridColor','k','GridAlpha',1); % 设置网格线为虚线
text(2,0.25,'$A_0=1.0,A_1=1.5,A_2=1.5$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)
title('$A_0=k_0,A_1=a_1+k_1,A_2=a_2+k_2$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15,'Position',[16.5,-0.68])

subplot(223);plot(t,u,'k','LineWidth',1.5)
xlabel('$t/s$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15); % 标注坐标轴
ylabel('$u$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15);
axis([0,15,0,2]); % 设置坐标轴上下限
axis_h=gca;  % 当前轴的句柄
set(axis_h,'Fontname','Times New Roman','Fontsize',15,'LineWidth',0.8)
set(gcf,'Position',[200,162,980,410]); % 设置图片大小
grid on;set(gca,'GridLineStyle',':','GridColor','k','GridAlpha',1); % 设置网格线为虚线
text(2,0.3,'$A_0=1.0,A_1=1.5,A_2=1.5$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)

%% 第二组增益
k0=1;k1=2.8;k2=2;
for i=2:N-1
    e(i)=v0-x1(i); %误差
    De(i)=(e(i)-e(i-1))/h; %误差的微分（差分）
    e0(i)=e0(i-1)+h*e(i); %误差的积分
    u(i+1)=k1*e(i)+k0*e0(i)+k2*De(i);

    x1(i+1)=x1(i)+h*x2(i);
    x2(i+1)=x2(i)+h*(-a1*x1(i)-a2*x2(i)+u(i+1));
    y(i+1)=x1(i+1);
end
t(N)=N*h;
subplot(222);plot(t,y,'k','LineWidth',1.5)
% xlabel('$t/s$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15); % 标注坐标轴
% ylabel('$y$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15);
axis([0,15,0,1.5]); % 设置坐标轴上下限
axis_h=gca;  % 当前轴的句柄
set(axis_h,'Fontname','Times New Roman','Fontsize',15,'LineWidth',0.8)
set(gcf,'Position',[200,162,980,410]); % 设置图片大小
grid on;set(gca,'GridLineStyle',':','GridColor','k','GridAlpha',1); % 设置网格线为虚线
text(2,0.25,'$A_0=1.0,A_1=3.8,A_2=3.0$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)

subplot(224);plot(t,u,'k','LineWidth',1.5)
xlabel('$t/s$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15); % 标注坐标轴
% ylabel('$u$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15);
axis([0,15,0,3]); % 设置坐标轴上下限
axis_h=gca;  % 当前轴的句柄
set(axis_h,'Fontname','Times New Roman','Fontsize',15,'LineWidth',0.8)
set(gcf,'Position',[200,162,980,410]); % 设置图片大小
grid on;set(gca,'GridLineStyle',':','GridColor','k','GridAlpha',1); % 设置网格线为虚线
text(2,0.4,'$A_0=1.0,A_1=3.8,A_2=3.0$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)

sgtitle('$\ddot x=-x-\dot x+u \quad (a_1=1,a_2=1)$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)
% exportgraphics(gca,'code1_1_4.png','Resolution',600)

1.2节

1.2节

图1-2-1
图1-2-1
图1-2-1 Provided by 张聪玮 @2022-04-14
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18

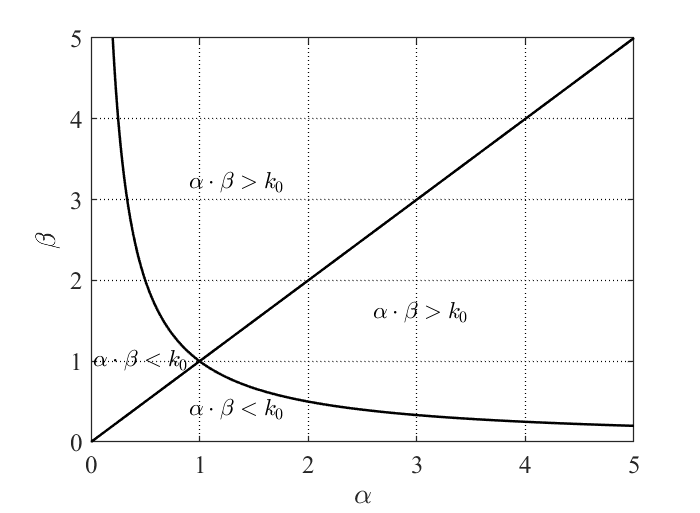

clc,clear,clf
a=0:0.01:5;
b1=a;
k0=1;
b2=k0./a;

plot(a,b1,'k',a,b2,'k','LineWidth',1.5);
xlabel('$\alpha$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15); % 标注坐标轴
ylabel('$\beta$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15);
axis([0,5,0,5]); % 设置坐标轴上下限
axis_h=gca;  % 当前轴的句柄
set(axis_h,'Fontname','Times New Roman','Fontsize',15,'LineWidth',0.8)
set(gcf,'Position',[347,162,560,410]); % 设置图片大小
grid on;set(gca,'GridLineStyle',':','GridColor','k','GridAlpha',1); % 设置网格线为虚线
text(0.02,1,'$\alpha \cdot \beta<k_0$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',13.5)
text(0.9,0.4,'$\alpha \cdot \beta<k_0$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',13.5)
text(0.9,3.2,'$\alpha \cdot \beta>k_0$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',13.5)
text(2.6,1.6,'$\alpha \cdot \beta>k_0$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',13.5)

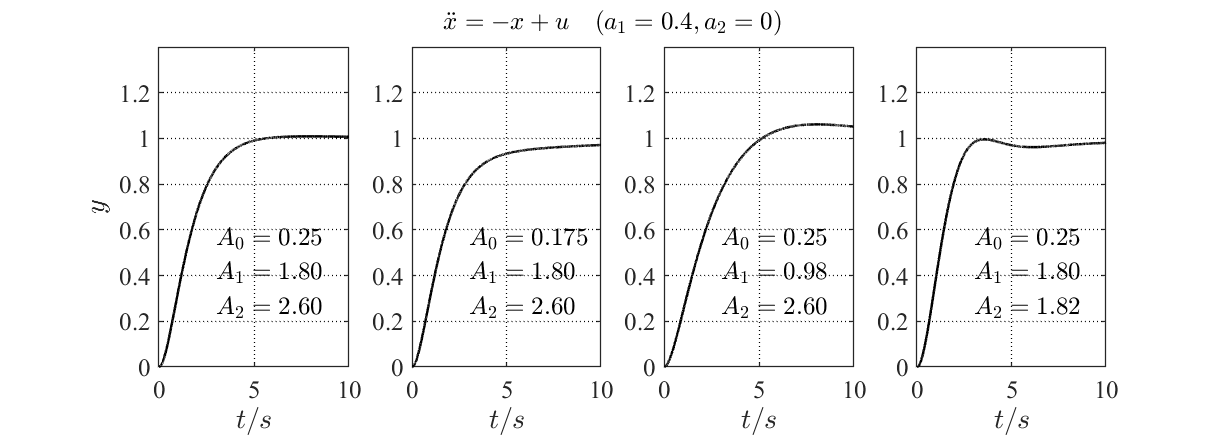

图1-2-2
图1-2-2

图1-2-2 Provided by 张聪玮 @2022-04-14
  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
%控制增益下调30%
%二阶振荡环节，传递函数W(s)=1/(s^2+a2*s+a1)
%A0=k0,A1=k1+a1,A2=k2+a2,b=a1
clc,clear,clf
h=0.001;T=10;N=T/h;
n=1:N;t=n*h;
v0=1;
a1=0.4;a2=0;
x1=zeros(1,N);x2=zeros(1,N);
e=zeros(1,N);De=zeros(1,N);e0=zeros(1,N); %误差，误差的微分，误差的积分
e(1)=v0(1);De(1)=0;e0(1)=0;

%% 原始参数
k0=0.25;k1=1.4;k2=2.6;
for i=2:N-1
    e(i)=v0-x1(i); %误差
    De(i)=(e(i)-e(i-1))/h; %误差的微分（差分）
    e0(i)=e0(i-1)+h*e(i); %误差的积分
    u(i+1)=k1*e(i)+k0*e0(i)+k2*De(i);

    x1(i+1)=x1(i)+h*x2(i);
    x2(i+1)=x2(i)+h*(-a1*x1(i)-a2*x2(i)+u(i+1));
    y(i+1)=x1(i+1);
end
t(N)=N*h;
subplot(141);plot(t,y,'k','LineWidth',1.5)
xlabel('$t/s$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15); % 标注坐标轴
ylabel('$y$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15);
axis([0,10,0,1.4]); % 设置坐标轴上下限
axis_h=gca;  % 当前轴的句柄
set(axis_h,'Fontname','Times New Roman','Fontsize',15,'LineWidth',0.8)
set(gcf,'Position',[200,162,980,350]); % 设置图片大小
grid on;set(gca,'GridLineStyle',':','GridColor','k','GridAlpha',1); % 设置网格线为虚线
text(3,0.56,'$A_0=0.25$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)
text(3,0.41,'$A_1=1.80$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)
text(3,0.26,'$A_2=2.60$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)

%% k0下调30%
k0=0.25*0.7;k1=1.4;k2=2.6;
for i=2:N-1
    e(i)=v0-x1(i); %误差
    De(i)=(e(i)-e(i-1))/h; %误差的微分（差分）
    e0(i)=e0(i-1)+h*e(i); %误差的积分
    u(i+1)=k1*e(i)+k0*e0(i)+k2*De(i);

    x1(i+1)=x1(i)+h*x2(i);
    x2(i+1)=x2(i)+h*(-a1*x1(i)-a2*x2(i)+u(i+1));
    y(i+1)=x1(i+1);
end
t(N)=N*h;
subplot(142);plot(t,y,'k','LineWidth',1.5)
xlabel('$t/s$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15); % 标注坐标轴
% ylabel('$y$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15);
axis([0,10,0,1.4]); % 设置坐标轴上下限
axis_h=gca;  % 当前轴的句柄
set(axis_h,'Fontname','Times New Roman','Fontsize',15,'LineWidth',0.8)
set(gcf,'Position',[200,162,980,350]); % 设置图片大小
grid on;set(gca,'GridLineStyle',':','GridColor','k','GridAlpha',1); % 设置网格线为虚线
text(3,0.56,'$A_0=0.175$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)
text(3,0.41,'$A_1=1.80$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)
text(3,0.26,'$A_2=2.60$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)

%% k1下调30%
k0=0.25;k1=1.4*0.7;k2=2.6;
for i=2:N-1
    e(i)=v0-x1(i); %误差
    De(i)=(e(i)-e(i-1))/h; %误差的微分（差分）
    e0(i)=e0(i-1)+h*e(i); %误差的积分
    u(i+1)=k1*e(i)+k0*e0(i)+k2*De(i);

    x1(i+1)=x1(i)+h*x2(i);
    x2(i+1)=x2(i)+h*(-a1*x1(i)-a2*x2(i)+u(i+1));
    y(i+1)=x1(i+1);
end
t(N)=N*h;
subplot(143);plot(t,y,'k','LineWidth',1.5)
xlabel('$t/s$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15); % 标注坐标轴
% ylabel('$y$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15);
axis([0,10,0,1.4]); % 设置坐标轴上下限
axis_h=gca;  % 当前轴的句柄
set(axis_h,'Fontname','Times New Roman','Fontsize',15,'LineWidth',0.8)
set(gcf,'Position',[200,162,980,350]); % 设置图片大小
grid on;set(gca,'GridLineStyle',':','GridColor','k','GridAlpha',1); % 设置网格线为虚线
text(3,0.56,'$A_0=0.25$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)
text(3,0.41,'$A_1=0.98$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)
text(3,0.26,'$A_2=2.60$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)

%% k2下调30%
k0=0.25;k1=1.4;k2=2.6*0.7;
for i=2:N-1
    e(i)=v0-x1(i); %误差
    De(i)=(e(i)-e(i-1))/h; %误差的微分（差分）
    e0(i)=e0(i-1)+h*e(i); %误差的积分
    u(i+1)=k1*e(i)+k0*e0(i)+k2*De(i);

    x1(i+1)=x1(i)+h*x2(i);
    x2(i+1)=x2(i)+h*(-a1*x1(i)-a2*x2(i)+u(i+1));
    y(i+1)=x1(i+1);
end
t(N)=N*h;
subplot(144);plot(t,y,'k','LineWidth',1.5)
xlabel('$t/s$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15); % 标注坐标轴
% ylabel('$y$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15);
axis([0,10,0,1.4]); % 设置坐标轴上下限
axis_h=gca;  % 当前轴的句柄
set(axis_h,'Fontname','Times New Roman','Fontsize',15,'LineWidth',0.8)
set(gcf,'Position',[200,162,980,350]); % 设置图片大小
grid on;set(gca,'GridLineStyle',':','GridColor','k','GridAlpha',1); % 设置网格线为虚线
text(3,0.56,'$A_0=0.25$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)
text(3,0.41,'$A_1=1.80$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)
text(3,0.26,'$A_2=1.82$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)

sgtitle('$\ddot x=-x+u \quad (a_1=0.4,a_2=0)$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)

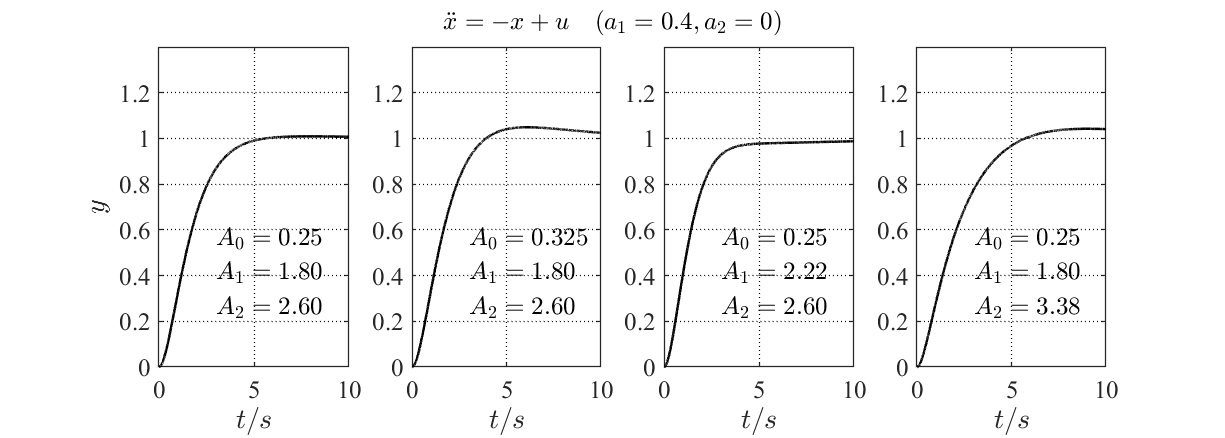

图1-2-3
图1-2-3

图1-2-3 Provided by 张聪玮 @2022-04-14
  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
%控制增益上调
%二阶振荡环节，传递函数W(s)=1/(s^2+a2*s+a1)
%A0=k0,A1=k1+a1,A2=k2+a2,b=a1
clc,clear,clf
h=0.001;T=10;N=T/h;
n=1:N;t=n*h;
v0=1;
a1=0.4;a2=0;
x1=zeros(1,N);x2=zeros(1,N);
e=zeros(1,N);De=zeros(1,N);e0=zeros(1,N); %误差，误差的微分，误差的积分
e(1)=v0(1);De(1)=0;e0(1)=0;

%% 原始参数
k0=0.25;k1=1.4;k2=2.6;
for i=2:N-1
    e(i)=v0-x1(i); %误差
    De(i)=(e(i)-e(i-1))/h; %误差的微分（差分）
    e0(i)=e0(i-1)+h*e(i); %误差的积分
    u(i+1)=k1*e(i)+k0*e0(i)+k2*De(i);

    x1(i+1)=x1(i)+h*x2(i);
    x2(i+1)=x2(i)+h*(-a1*x1(i)-a2*x2(i)+u(i+1));
    y(i+1)=x1(i+1);
end
t(N)=N*h;
subplot(141);plot(t,y,'k','LineWidth',1.5)
xlabel('$t/s$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15); % 标注坐标轴
ylabel('$y$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15);
axis([0,10,0,1.4]); % 设置坐标轴上下限
axis_h=gca;  % 当前轴的句柄
set(axis_h,'Fontname','Times New Roman','Fontsize',15,'LineWidth',0.8)
set(gcf,'Position',[200,162,980,350]); % 设置图片大小
grid on;set(gca,'GridLineStyle',':','GridColor','k','GridAlpha',1); % 设置网格线为虚线
text(3,0.56,'$A_0=0.25$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)
text(3,0.41,'$A_1=1.80$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)
text(3,0.26,'$A_2=2.60$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)

%% k0上调30%
k0=0.25*1.3;k1=1.4;k2=2.6;
for i=2:N-1
    e(i)=v0-x1(i); %误差
    De(i)=(e(i)-e(i-1))/h; %误差的微分（差分）
    e0(i)=e0(i-1)+h*e(i); %误差的积分
    u(i+1)=k1*e(i)+k0*e0(i)+k2*De(i);

    x1(i+1)=x1(i)+h*x2(i);
    x2(i+1)=x2(i)+h*(-a1*x1(i)-a2*x2(i)+u(i+1));
    y(i+1)=x1(i+1);
end
t(N)=N*h;
subplot(142);plot(t,y,'k','LineWidth',1.5)
xlabel('$t/s$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15); % 标注坐标轴
% ylabel('$y$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15);
axis([0,10,0,1.4]); % 设置坐标轴上下限
axis_h=gca;  % 当前轴的句柄
set(axis_h,'Fontname','Times New Roman','Fontsize',15,'LineWidth',0.8)
set(gcf,'Position',[200,162,980,350]); % 设置图片大小
grid on;set(gca,'GridLineStyle',':','GridColor','k','GridAlpha',1); % 设置网格线为虚线
text(3,0.56,'$A_0=0.325$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)
text(3,0.41,'$A_1=1.80$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)
text(3,0.26,'$A_2=2.60$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)

%% k1上调30%
k0=0.25;k1=1.4*1.3;k2=2.6;
for i=2:N-1
    e(i)=v0-x1(i); %误差
    De(i)=(e(i)-e(i-1))/h; %误差的微分（差分）
    e0(i)=e0(i-1)+h*e(i); %误差的积分
    u(i+1)=k1*e(i)+k0*e0(i)+k2*De(i);

    x1(i+1)=x1(i)+h*x2(i);
    x2(i+1)=x2(i)+h*(-a1*x1(i)-a2*x2(i)+u(i+1));
    y(i+1)=x1(i+1);
end
t(N)=N*h;
subplot(143);plot(t,y,'k','LineWidth',1.5)
xlabel('$t/s$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15); % 标注坐标轴
% ylabel('$y$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15);
axis([0,10,0,1.4]); % 设置坐标轴上下限
axis_h=gca;  % 当前轴的句柄
set(axis_h,'Fontname','Times New Roman','Fontsize',15,'LineWidth',0.8)
set(gcf,'Position',[200,162,980,350]); % 设置图片大小
grid on;set(gca,'GridLineStyle',':','GridColor','k','GridAlpha',1); % 设置网格线为虚线
text(3,0.56,'$A_0=0.25$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)
text(3,0.41,'$A_1=2.22$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)
text(3,0.26,'$A_2=2.60$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)

%% k2上调30%
k0=0.25;k1=1.4;k2=2.6*1.3;
for i=2:N-1
    e(i)=v0-x1(i); %误差
    De(i)=(e(i)-e(i-1))/h; %误差的微分（差分）
    e0(i)=e0(i-1)+h*e(i); %误差的积分
    u(i+1)=k1*e(i)+k0*e0(i)+k2*De(i);

    x1(i+1)=x1(i)+h*x2(i);
    x2(i+1)=x2(i)+h*(-a1*x1(i)-a2*x2(i)+u(i+1));
    y(i+1)=x1(i+1);
end
t(N)=N*h;
subplot(144);plot(t,y,'k','LineWidth',1.5)
xlabel('$t/s$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15); % 标注坐标轴
% ylabel('$y$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15);
axis([0,10,0,1.4]); % 设置坐标轴上下限
axis_h=gca;  % 当前轴的句柄
set(axis_h,'Fontname','Times New Roman','Fontsize',15,'LineWidth',0.8)
set(gcf,'Position',[200,162,980,350]); % 设置图片大小
grid on;set(gca,'GridLineStyle',':','GridColor','k','GridAlpha',1); % 设置网格线为虚线
text(3,0.56,'$A_0=0.25$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)
text(3,0.41,'$A_1=1.80$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)
text(3,0.26,'$A_2=3.38$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)

sgtitle('$\ddot x=-x+u \quad (a_1=0.4,a_2=0)$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)

1.4节 1-6

1.4节

图1-4-1
图1-4-1

图1-4-1 Provided by 张聪玮 @2022-04-14
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
%安排过渡过程的作用
clc,clear,clf
h=0.005;T=5;N=T/h;
n=0:N;t=n*h;
% v0=ones(1,N);
t0 = 0; % t0表示阶跃信号突变的时刻
v0 = stepfun(t,t0); % 输入单位阶跃信号
x1=zeros(1,N);x2=zeros(1,N);
%% r=2
r=2;
for i=1:N
    x1(i+1)=x1(i)+h*x2(i);
    x2(i+1)=x2(i)+h*(-r^2*(x1(i)-v0(i))-2*r*x2(i));
    y(i+1)=x1(i+1);
end
subplot(141);plot(t,y,'k','LineWidth',1.5)
xlabel('$t/s$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15); % 标注坐标轴
ylabel('$y$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15);
axis([0,5,0,1]); % 设置坐标轴上下限
axis_h=gca;  % 当前轴的句柄
set(axis_h,'Fontname','Times New Roman','Fontsize',15,'LineWidth',0.8)
set(gcf,'Position',[200,162,980,350]); % 设置图片大小
grid on;set(gca,'GridLineStyle',':','GridColor','k','GridAlpha',1); % 设置网格线为虚线
text(0.5,0.1,'$r=2,T_0=3.5$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)


%% r=4
r=4;
for i=1:N
    x1(i+1)=x1(i)+h*x2(i);
    x2(i+1)=x2(i)+h*(-r^2*(x1(i)-v0(i))-2*r*x2(i));
    y(i+1)=x1(i+1);
end
subplot(142);plot(t,y,'k','LineWidth',1.5)
xlabel('$t/s$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15); % 标注坐标轴
% ylabel('$y$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15);
axis([0,5,0,1]); % 设置坐标轴上下限
axis_h=gca;  % 当前轴的句柄
set(axis_h,'Fontname','Times New Roman','Fontsize',15,'LineWidth',0.8)
set(gcf,'Position',[200,162,980,350]); % 设置图片大小
grid on;set(gca,'GridLineStyle',':','GridColor','k','GridAlpha',1); % 设置网格线为虚线
text(0.3,0.1,'$r=4,T_0=1.75$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)

%% r=6
r=6;
for i=1:N
    x1(i+1)=x1(i)+h*x2(i);
    x2(i+1)=x2(i)+h*(-r^2*(x1(i)-v0(i))-2*r*x2(i));
    y(i+1)=x1(i+1);
end
subplot(143);plot(t,y,'k','LineWidth',1.5)
xlabel('$t/s$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15); % 标注坐标轴
% ylabel('$y$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15);
axis([0,5,0,1]); % 设置坐标轴上下限
axis_h=gca;  % 当前轴的句柄
set(axis_h,'Fontname','Times New Roman','Fontsize',15,'LineWidth',0.8)
set(gcf,'Position',[200,162,980,350]); % 设置图片大小
grid on;set(gca,'GridLineStyle',':','GridColor','k','GridAlpha',1); % 设置网格线为虚线
text(0.3,0.1,'$r=6,T_0=1.17$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)

%% r=8
r=8;
for i=1:N
    x1(i+1)=x1(i)+h*x2(i);
    x2(i+1)=x2(i)+h*(-r^2*(x1(i)-v0(i))-2*r*x2(i));
    y(i+1)=x1(i+1);
end
subplot(144);plot(t,y,'k','LineWidth',1.5)
xlabel('$t/s$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15); % 标注坐标轴
% ylabel('$y$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15);
axis([0,5,0,1]); % 设置坐标轴上下限
axis_h=gca;  % 当前轴的句柄
set(axis_h,'Fontname','Times New Roman','Fontsize',15,'LineWidth',0.8)
set(gcf,'Position',[200,162,980,350]); % 设置图片大小
grid on;set(gca,'GridLineStyle',':','GridColor','k','GridAlpha',1); % 设置网格线为虚线
text(0.3,0.1,'$r=8,T_0=0.88$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)

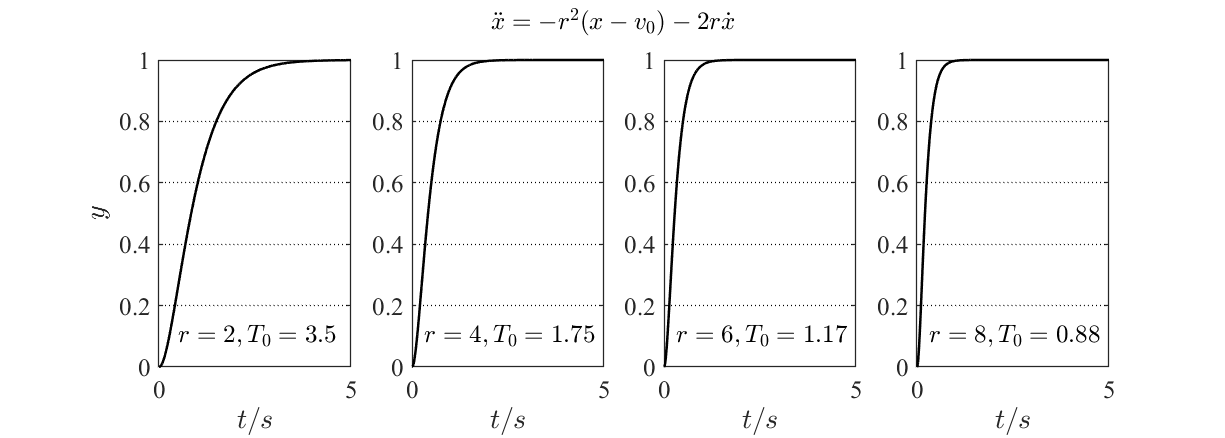

sgtitle('$\ddot x=-r^2(x-v_0)-2r \dot x$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)

图1-4-2
图1-4-2

图1-4-2 Provided by 张聪玮 @2022-04-14
  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104

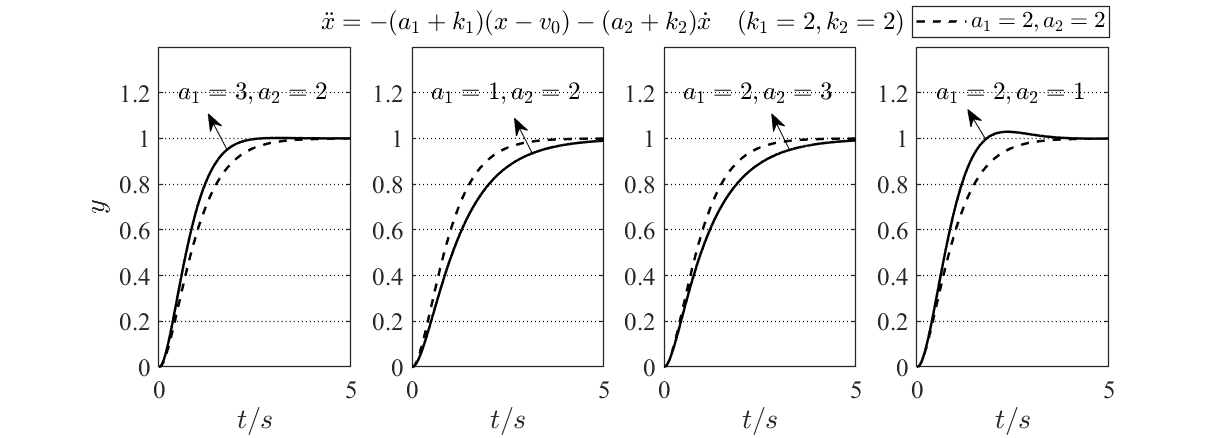

%对象参数的摄动对过渡过程的影响
clc,clear,clf
h=0.005;T=5;N=T/h;
n=0:N;t=n*h;
% v0=ones(1,N);
t0 = 0; % t0表示阶跃信号突变的时刻
v0 = stepfun(t,t0); % 输入单位阶跃信号
x1=zeros(1,N);x2=zeros(1,N);
k1=2;k2=2; %固定PD的增益k1,k2

%% 原始参数a1=2;a2=2;
a1=2;a2=2;
a_1=a1+k1;a_2=a2+k2;
for i=1:N
    x1(i+1)=x1(i)+h*x2(i);
    x2(i+1)=x2(i)+h*(-a_1*(x1(i)-v0(i))-a_2*x2(i));
    y0(i+1)=x1(i+1);
end

%% a1=3;a2=2;
a1=3;a2=2;
a_1=a1+k1;a_2=a2+k2;
for i=1:N
    x1(i+1)=x1(i)+h*x2(i);
    x2(i+1)=x2(i)+h*(-a_1*(x1(i)-v0(i))-a_2*x2(i));
    y(i+1)=x1(i+1);
end
subplot(141);plot(t,y0,'k--','LineWidth',1.5)
hold on;plot(t,y,'k','LineWidth',1.5)
xlabel('$t/s$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15); % 标注坐标轴
ylabel('$y$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15);
axis([0,5,0,1.4]); % 设置坐标轴上下限
axis_h=gca;  % 当前轴的句柄
set(axis_h,'Fontname','Times New Roman','Fontsize',15,'LineWidth',0.8)
set(gcf,'Position',[200,162,980,350]); % 设置图片大小
grid on;set(gca,'GridLineStyle',':','GridColor','k','GridAlpha',1); % 设置网格线为虚线
annotation('arrow',[0.185 0.17],[0.66 0.74]);
text(0.5,1.2,'$a_1=3,a_2=2$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)

%% a1=1;a2=2;
a1=1;a2=2;
a_1=a1+k1;a_2=a2+k2;
for i=1:N
    x1(i+1)=x1(i)+h*x2(i);
    x2(i+1)=x2(i)+h*(-a_1*(x1(i)-v0(i))-a_2*x2(i));
    y(i+1)=x1(i+1);
end
subplot(142);plot(t,y0,'k--','LineWidth',1.5)
hold on;plot(t,y,'k','LineWidth',1.5)
xlabel('$t/s$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15); % 标注坐标轴
% ylabel('$y$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15);
axis([0,5,0,1.4]); % 设置坐标轴上下限
axis_h=gca;  % 当前轴的句柄
set(axis_h,'Fontname','Times New Roman','Fontsize',15,'LineWidth',0.8)
set(gcf,'Position',[200,162,980,350]); % 设置图片大小
grid on;set(gca,'GridLineStyle',':','GridColor','k','GridAlpha',1); % 设置网格线为虚线
annotation('arrow',[0.435 0.42],[0.647 0.73]);
text(0.5,1.2,'$a_1=1,a_2=2$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)

%% a1=2;a2=3;
a1=2;a2=3;
a_1=a1+k1;a_2=a2+k2;
for i=1:N
    x1(i+1)=x1(i)+h*x2(i);
    x2(i+1)=x2(i)+h*(-a_1*(x1(i)-v0(i))-a_2*x2(i));
    y(i+1)=x1(i+1);
end
subplot(143);plot(t,y0,'k--','LineWidth',1.5)
hold on;plot(t,y,'k','LineWidth',1.5)
xlabel('$t/s$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15); % 标注坐标轴
% ylabel('$y$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15);
axis([0,5,0,1.4]); % 设置坐标轴上下限
axis_h=gca;  % 当前轴的句柄
set(axis_h,'Fontname','Times New Roman','Fontsize',15,'LineWidth',0.8)
set(gcf,'Position',[200,162,980,350]); % 设置图片大小
grid on;set(gca,'GridLineStyle',':','GridColor','k','GridAlpha',1); % 设置网格线为虚线
annotation('arrow',[0.645 0.63],[0.655 0.74]);
text(0.5,1.2,'$a_1=2,a_2=3$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)

%% a1=2;a2=1;
a1=2;a2=1;
a_1=a1+k1;a_2=a2+k2;
for i=1:N
    x1(i+1)=x1(i)+h*x2(i);
    x2(i+1)=x2(i)+h*(-a_1*(x1(i)-v0(i))-a_2*x2(i));
    y(i+1)=x1(i+1);
end
subplot(144);plot(t,y0,'k--','LineWidth',1.5)
hold on;plot(t,y,'k','LineWidth',1.5)
xlabel('$t/s$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15); % 标注坐标轴
% ylabel('$y$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15);
axis([0,5,0,1.4]); % 设置坐标轴上下限
axis_h=gca;  % 当前轴的句柄
set(axis_h,'Fontname','Times New Roman','Fontsize',15,'LineWidth',0.8)
set(gcf,'Position',[200,162,980,350]); % 设置图片大小
grid on;set(gca,'GridLineStyle',':','GridColor','k','GridAlpha',1); % 设置网格线为虚线
annotation('arrow',[0.805 0.79],[0.68 0.75]);
text(0.5,1.2,'$a_1=2,a_2=1$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)

lgd = legend('$a_1=2,a_2=2$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',13.5);
lgd.NumColumns = 1;
lgd.Position = [0.825 0.95 0 0];  % 左右 上下 宽度 高度

sgtitle('$\ddot x=-(a_1+k_1)(x-v_0)-(a_2+k_2) \dot x \quad (k_1=2,k_2=2)$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)

图1-4-3
图1-4-3

图1-4-3 Provided by 张聪玮 @2022-04-14
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
%对象（1.4.4）——ddx=-(a_1+k_1)(x-v_0)-(a_2+k_2) dx
clc,clear,clf
h=0.005;T=5;N=T/h;
n=0:N;t=n*h;
% v0=ones(1,N);
t0 = 0; % t0表示阶跃信号突变的时刻
v0 = stepfun(t,t0); % 输入单位阶跃信号
x1=zeros(1,N);x2=zeros(1,N);
a1=2;a2=2;k2=0;

%% k1=0;
k1=0;a_1=a1+k1;a_2=a2+k2;
for i=1:N
    x1(i+1)=x1(i)+h*x2(i); %公式（1.4.4）
    x2(i+1)=x2(i)+h*(-a_1*(x1(i)-v0(i))-a_2*x2(i));
    y(i+1)=x1(i+1);
end
subplot(131);plot(t,y,'k','LineWidth',1.5)
hold on;plot(t,v0,'k-.','LineWidth',1)
xlabel('$t/s$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15); % 标注坐标轴
ylabel('$y$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15);
axis([0,5,0,1.4]); % 设置坐标轴上下限
axis_h=gca;  % 当前轴的句柄
set(axis_h,'Fontname','Times New Roman','Fontsize',15,'LineWidth',0.8)
set(gcf,'Position',[200,162,780,350]); % 设置图片大小
grid on;set(gca,'GridLineStyle',':','GridColor','k','GridAlpha',1); % 设置网格线为虚线
text(1.5,0.1,'$k_1=0$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)

%% k1=3;
k1=3;a_1=a1+k1;a_2=a2+k2;
for i=1:N
    x1(i+1)=x1(i)+h*x2(i);
    x2(i+1)=x2(i)+h*(-a_1*(x1(i)-v0(i))-a_2*x2(i));
    y(i+1)=x1(i+1);
end
subplot(132);plot(t,y,'k','LineWidth',1.5)
hold on;plot(t,v0,'k-.','LineWidth',1)
xlabel('$t/s$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15); % 标注坐标轴
% ylabel('$y$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15);
axis([0,5,0,1.4]); % 设置坐标轴上下限
axis_h=gca;  % 当前轴的句柄
set(axis_h,'Fontname','Times New Roman','Fontsize',15,'LineWidth',0.8)
set(gcf,'Position',[200,162,780,350]); % 设置图片大小
grid on;set(gca,'GridLineStyle',':','GridColor','k','GridAlpha',1); % 设置网格线为虚线
text(1.5,0.1,'$k_1=3$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)

%% k1=6;
k1=6;a_1=a1+k1;a_2=a2+k2;
for i=1:N
    x1(i+1)=x1(i)+h*x2(i);
    x2(i+1)=x2(i)+h*(-a_1*(x1(i)-v0(i))-a_2*x2(i));
    y(i+1)=x1(i+1);
end
subplot(133);plot(t,y,'k','LineWidth',1.5)
hold on;plot(t,v0,'k-.','LineWidth',1)
xlabel('$t/s$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15); % 标注坐标轴
% ylabel('$y$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15);
axis([0,5,0,1.4]); % 设置坐标轴上下限
axis_h=gca;  % 当前轴的句柄
set(axis_h,'Fontname','Times New Roman','Fontsize',15,'LineWidth',0.8)
set(gcf,'Position',[200,162,780,350]); % 设置图片大小
grid on;set(gca,'GridLineStyle',':','GridColor','k','GridAlpha',1); % 设置网格线为虚线
text(1.5,0.1,'$k_1=6$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)

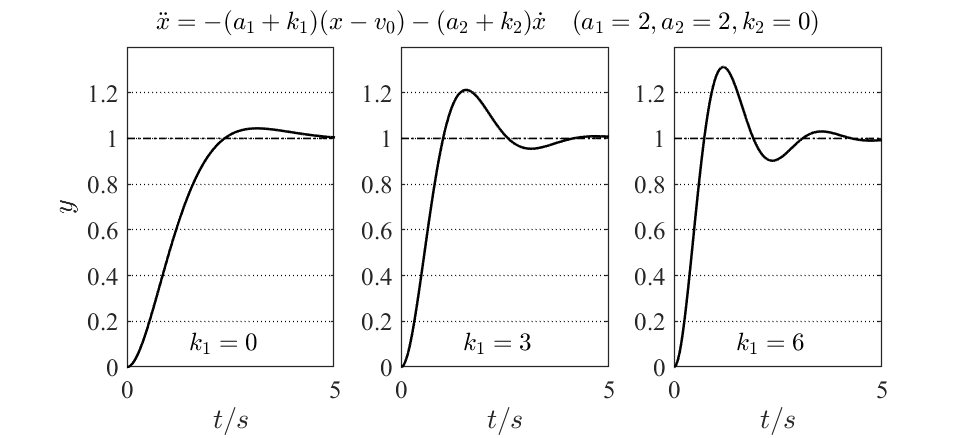

sgtitle('$\ddot x=-(a_1+k_1)(x-v_0)-(a_2+k_2) \dot x \quad (a_1=2,a_2=2,k_2=0)$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)

图1-4-4
图1-4-4

图1-4-4 Provided by 张聪玮 @2022-04-14
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
%对象（1.4.8）——ddx=-(a_1+k_1)(x-v_0*tran(T0,t))-a_2*dx
clc,clear,clf
h=0.001;T=5;N=T/h;
n=0:N;t=n*h;
% v0=ones(1,N);
t0 = 0; % t0表示阶跃信号突变的时刻
v0 = stepfun(t,t0); % 输入单位阶跃信号
x1=zeros(1,N);x2=zeros(1,N);
a1=2;a2=2;k2=0;
%% k1=800,T0=2
k1=800;T0=2;
a_1=a1+k1;
for i=1:N
    x1(i+1)=x1(i)+h*x2(i); %公式（1.4.8）
    x2(i+1)=x2(i)+h*(-a_1*(x1(i)-v0(i).*trns(T0,t(i)))-a2*x2(i));
    y(i+1)=x1(i+1);
end
subplot(141);plot(t,y,'k','LineWidth',1.5)
hold on;plot(t,v0,'k-.','LineWidth',1)
xlabel('$t/s$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15); % 标注坐标轴
ylabel('$y$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15);
axis([0,5,0,1.4]); % 设置坐标轴上下限
axis_h=gca;  % 当前轴的句柄
set(axis_h,'Fontname','Times New Roman','Fontsize',15,'LineWidth',0.8)
set(gcf,'Position',[200,162,980,350]); % 设置图片大小
grid on;set(gca,'GridLineStyle',':','GridColor','k','GridAlpha',1); % 设置网格线为虚线
text(0.2,1.1,'$k_1=800,T_0=2$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)

%% k1=400,T0=2
k1=400;T0=2;
a_1=a1+k1;
for i=1:N
    x1(i+1)=x1(i)+h*x2(i); %公式（1.4.8）
    x2(i+1)=x2(i)+h*(-a_1*(x1(i)-v0(i).*trns(T0,t(i)))-a2*x2(i));
    y(i+1)=x1(i+1);
end
subplot(142);plot(t,y,'k','LineWidth',1.5)
hold on;plot(t,v0,'k-.','LineWidth',1)
xlabel('$t/s$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15); % 标注坐标轴
% ylabel('$y$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15);
axis([0,5,0,1.4]); % 设置坐标轴上下限
axis_h=gca;  % 当前轴的句柄
set(axis_h,'Fontname','Times New Roman','Fontsize',15,'LineWidth',0.8)
set(gcf,'Position',[200,162,980,350]); % 设置图片大小
grid on;set(gca,'GridLineStyle',':','GridColor','k','GridAlpha',1); % 设置网格线为虚线
text(0.2,1.1,'$k_1=400,T_0=2$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)

%% k1=800,T0=1
k1=800;T0=1;
a_1=a1+k1;
for i=1:N
    x1(i+1)=x1(i)+h*x2(i); %公式（1.4.8）
    x2(i+1)=x2(i)+h*(-a_1*(x1(i)-v0(i).*trns(T0,t(i)))-a2*x2(i));
    y(i+1)=x1(i+1);
end
subplot(143);plot(t,y,'k','LineWidth',1.5)
hold on;plot(t,v0,'k-.','LineWidth',1)
xlabel('$t/s$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15); % 标注坐标轴
% ylabel('$y$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15);
axis([0,5,0,1.4]); % 设置坐标轴上下限
axis_h=gca;  % 当前轴的句柄
set(axis_h,'Fontname','Times New Roman','Fontsize',15,'LineWidth',0.8)
set(gcf,'Position',[200,162,980,350]); % 设置图片大小
grid on;set(gca,'GridLineStyle',':','GridColor','k','GridAlpha',1); % 设置网格线为虚线
text(0.2,1.1,'$k_1=800,T_0=1$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)

%% k1=400,T0=1
k1=400;T0=1;
a_1=a1+k1;
for i=1:N
    x1(i+1)=x1(i)+h*x2(i); %公式（1.4.8）
    x2(i+1)=x2(i)+h*(-a_1*(x1(i)-v0(i).*trns(T0,t(i)))-a2*x2(i));
    y(i+1)=x1(i+1);
end
subplot(144);plot(t,y,'k','LineWidth',1.5)
hold on;plot(t,v0,'k-.','LineWidth',1)
xlabel('$t/s$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15); % 标注坐标轴
% ylabel('$y$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15);
axis([0,5,0,1.4]); % 设置坐标轴上下限
axis_h=gca;  % 当前轴的句柄
set(axis_h,'Fontname','Times New Roman','Fontsize',15,'LineWidth',0.8)
set(gcf,'Position',[200,162,980,350]); % 设置图片大小
grid on;set(gca,'GridLineStyle',':','GridColor','k','GridAlpha',1); % 设置网格线为虚线
text(0.2,1.1,'$k_1=400,T_0=1$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)

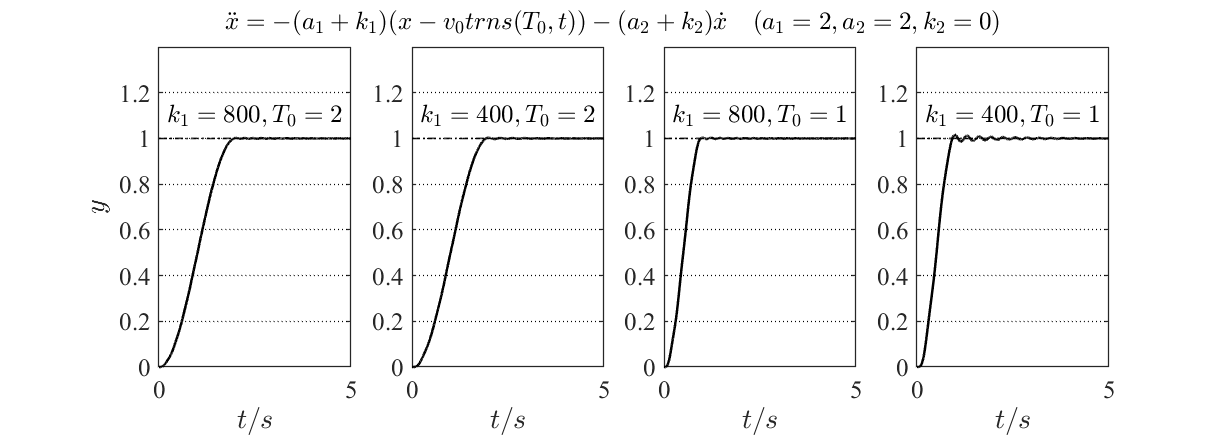

sgtitle('$\ddot x=-(a_1+k_1)(x-v_0 trns(T_0,t))-(a_2+k_2) \dot x \quad (a_1=2,a_2=2,k_2=0)$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)

图1-4-5
图1-4-5

图1-4-5 Provided by 张聪玮 @2022-04-14
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
%对象（1.4.8）——ddx=-(a_1+k_1)(x-v_0*tran(T0,t))-a_2*dx
clc,clear,clf
h=0.001;T=5;N=T/h;
n=0:N;t=n*h;
% v0=ones(1,N);
t0 = 0; % t0表示阶跃信号突变的时刻
v0 = stepfun(t,t0); % 输入单位阶跃信号
x1=zeros(1,N);x2=zeros(1,N);
a1=2;k1=600;k2=0;T0=1;a_1=a1+k1;

%% a2=2
a2=2;
for i=1:N
    x1(i+1)=x1(i)+h*x2(i); %公式（1.4.8）
    x2(i+1)=x2(i)+h*(-a_1*(x1(i)-v0(i).*trns(T0,t(i)))-a2*x2(i));
    y(i+1)=x1(i+1);
end
subplot(141);plot(t,y,'k','LineWidth',1.5)
hold on;plot(t,v0,'k-.','LineWidth',1)
xlabel('$t/s$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15); % 标注坐标轴
ylabel('$y$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15);
axis([0,5,0,1.4]); % 设置坐标轴上下限
axis_h=gca;  % 当前轴的句柄
set(axis_h,'Fontname','Times New Roman','Fontsize',15,'LineWidth',0.8)
set(gcf,'Position',[200,162,980,350]); % 设置图片大小
grid on;set(gca,'GridLineStyle',':','GridColor','k','GridAlpha',1); % 设置网格线为虚线
text(1.5,0.1,'$a_2=2$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)

%% a2=10
a2=10;
for i=1:N
    x1(i+1)=x1(i)+h*x2(i); %公式（1.4.8）
    x2(i+1)=x2(i)+h*(-a_1*(x1(i)-v0(i).*trns(T0,t(i)))-a2*x2(i));
    y(i+1)=x1(i+1);
end
subplot(142);plot(t,y,'k','LineWidth',1.5)
hold on;plot(t,v0,'k-.','LineWidth',1)
xlabel('$t/s$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15); % 标注坐标轴
% ylabel('$y$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15);
axis([0,5,0,1.4]); % 设置坐标轴上下限
axis_h=gca;  % 当前轴的句柄
set(axis_h,'Fontname','Times New Roman','Fontsize',15,'LineWidth',0.8)
set(gcf,'Position',[200,162,980,350]); % 设置图片大小
grid on;set(gca,'GridLineStyle',':','GridColor','k','GridAlpha',1); % 设置网格线为虚线
text(1.5,0.1,'$a_2=10$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)

%% a2=30
a2=30;
for i=1:N
    x1(i+1)=x1(i)+h*x2(i); %公式（1.4.8）
    x2(i+1)=x2(i)+h*(-a_1*(x1(i)-v0(i).*trns(T0,t(i)))-a2*x2(i));
    y(i+1)=x1(i+1);
end
subplot(143);plot(t,y,'k','LineWidth',1.5)
hold on;plot(t,v0,'k-.','LineWidth',1)
xlabel('$t/s$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15); % 标注坐标轴
% ylabel('$y$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15);
axis([0,5,0,1.4]); % 设置坐标轴上下限
axis_h=gca;  % 当前轴的句柄
set(axis_h,'Fontname','Times New Roman','Fontsize',15,'LineWidth',0.8)
set(gcf,'Position',[200,162,980,350]); % 设置图片大小
grid on;set(gca,'GridLineStyle',':','GridColor','k','GridAlpha',1); % 设置网格线为虚线
text(1.5,0.1,'$a_2=30$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)

%% a2=50
a2=50;
for i=1:N
    x1(i+1)=x1(i)+h*x2(i); %公式（1.4.8）
    x2(i+1)=x2(i)+h*(-a_1*(x1(i)-v0(i).*trns(T0,t(i)))-a2*x2(i));
    y(i+1)=x1(i+1);
end
subplot(144);plot(t,y,'k','LineWidth',1.5)
hold on;plot(t,v0,'k-.','LineWidth',1)
xlabel('$t/s$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15); % 标注坐标轴
% ylabel('$y$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15);
axis([0,5,0,1.4]); % 设置坐标轴上下限
axis_h=gca;  % 当前轴的句柄
set(axis_h,'Fontname','Times New Roman','Fontsize',15,'LineWidth',0.8)
set(gcf,'Position',[200,162,980,350]); % 设置图片大小
grid on;set(gca,'GridLineStyle',':','GridColor','k','GridAlpha',1); % 设置网格线为虚线
text(1.5,0.1,'$a_2=50$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)

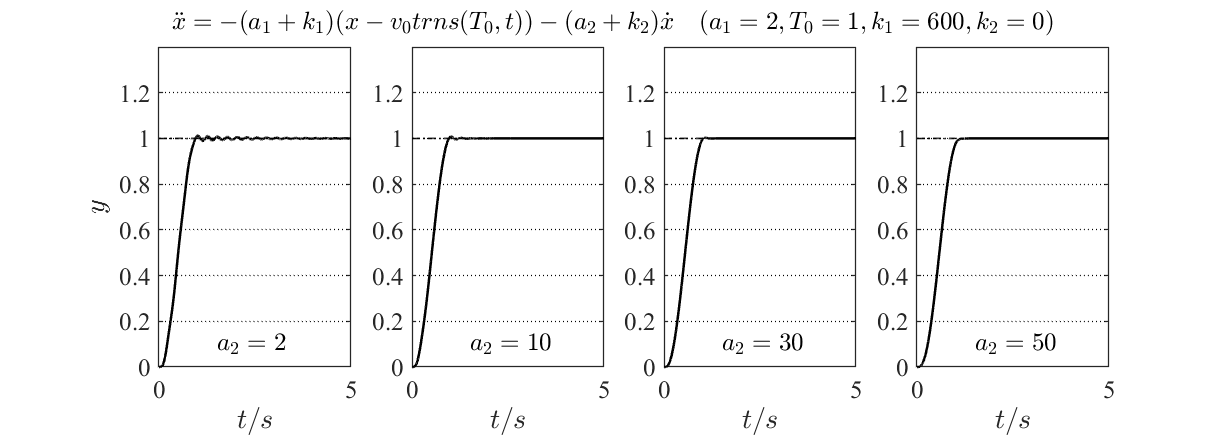

sgtitle('$\ddot x=-(a_1+k_1)(x-v_0 trns(T_0,t))-(a_2+k_2) \dot x \quad (a_1=2,T_0=1,k_1=600,k_2=0)$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)

图1-4-6
图1-4-6

图1-4-6 Provided by 张聪玮 @2022-04-14
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87

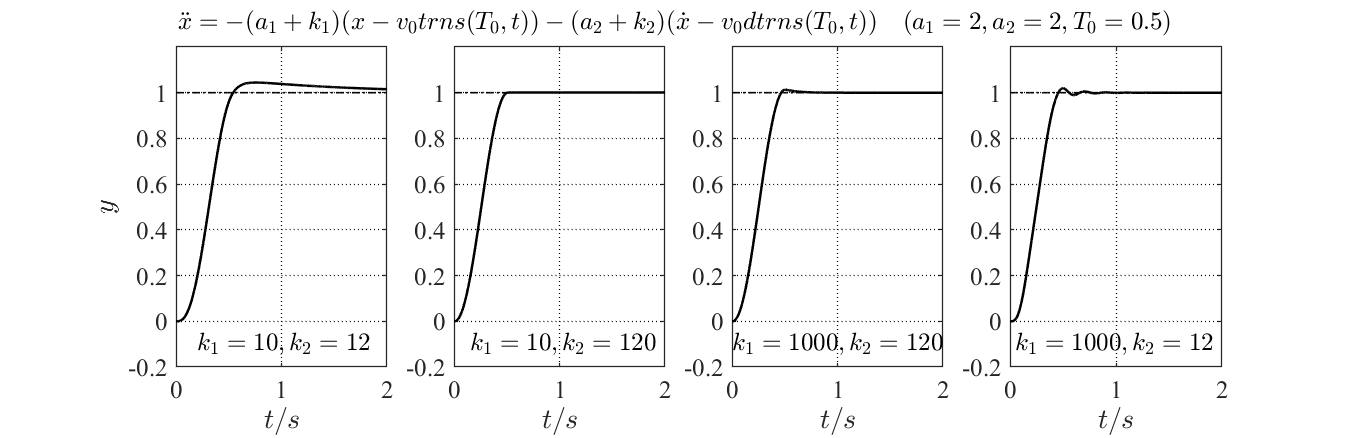

%对象（1.4.10）——ddx=-(a_1+k_1)(x-v_0*tran(T0,t))-a_2*(dx-v0*dtrns(T0,t))
clc,clear,clf
h=0.001;T=2;N=T/h;
n=0:N;t=n*h;
% v0=ones(1,N);
t0 = 0; % t0表示阶跃信号突变的时刻
v0 = stepfun(t,t0); % 输入单位阶跃信号
x1=zeros(1,N);x2=zeros(1,N);
a1=2;a2=2;T0=0.5;

%% k1=10,k2=12
k1=10;k2=12;
a_1=a1+k1;a_2=a2+k2;
for i=1:N
    x1(i+1)=x1(i)+h*x2(i); %公式（1.4.10）
    x2(i+1)=x2(i)+h*(-a_1*(x1(i)-v0(i).*trns(T0,t(i)))-a_2*(x2(i)-v0(i).*dtrns(T0,t(i))));
    y(i+1)=x1(i+1);
end
subplot(141);plot(t,y,'k','LineWidth',1.5)
hold on;plot(t,v0,'k-.','LineWidth',1)
xlabel('$t/s$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15); % 标注坐标轴
ylabel('$y$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15);
axis([0,2,-0.2,1.2]); % 设置坐标轴上下限
axis_h=gca;  % 当前轴的句柄
set(axis_h,'Fontname','Times New Roman','Fontsize',15,'LineWidth',0.8)
set(gcf,'Position',[100,162,1080,350]); % 设置图片大小
grid on;set(gca,'GridLineStyle',':','GridColor','k','GridAlpha',1); % 设置网格线为虚线
text(0.2,-0.1,'$k_1=10,k_2=12$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)

%% k1=10,k2=120
k1=10;k2=120;
a_1=a1+k1;a_2=a2+k2;
for i=1:N
    x1(i+1)=x1(i)+h*x2(i); %公式（1.4.10）
    x2(i+1)=x2(i)+h*(-a_1*(x1(i)-v0(i).*trns(T0,t(i)))-a_2*(x2(i)-v0(i).*dtrns(T0,t(i))));
    y(i+1)=x1(i+1);
end
subplot(142);plot(t,y,'k','LineWidth',1.5)
hold on;plot(t,v0,'k-.','LineWidth',1)
xlabel('$t/s$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15); % 标注坐标轴
% ylabel('$y$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15);
axis([0,2,-0.2,1.2]); % 设置坐标轴上下限
axis_h=gca;  % 当前轴的句柄
set(axis_h,'Fontname','Times New Roman','Fontsize',15,'LineWidth',0.8)
set(gcf,'Position',[100,162,1080,350]); % 设置图片大小
grid on;set(gca,'GridLineStyle',':','GridColor','k','GridAlpha',1); % 设置网格线为虚线
text(0.15,-0.1,'$k_1=10,k_2=120$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)

%% k1=1000,k2=120
k1=1000;k2=120;
a_1=a1+k1;a_2=a2+k2;
for i=1:N
    x1(i+1)=x1(i)+h*x2(i); %公式（1.4.10）
    x2(i+1)=x2(i)+h*(-a_1*(x1(i)-v0(i).*trns(T0,t(i)))-a_2*(x2(i)-v0(i).*dtrns(T0,t(i))));
    y(i+1)=x1(i+1);
end
subplot(143);plot(t,y,'k','LineWidth',1.5)
hold on;plot(t,v0,'k-.','LineWidth',1)
xlabel('$t/s$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15); % 标注坐标轴
% ylabel('$y$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15);
axis([0,2,-0.2,1.2]); % 设置坐标轴上下限
axis_h=gca;  % 当前轴的句柄
set(axis_h,'Fontname','Times New Roman','Fontsize',15,'LineWidth',0.8)
set(gcf,'Position',[100,162,1080,350]); % 设置图片大小
grid on;set(gca,'GridLineStyle',':','GridColor','k','GridAlpha',1); % 设置网格线为虚线
text(0,-0.1,'$k_1=1000,k_2=120$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)

%% k1=1000,k2=12
k1=1000;k2=12;
a_1=a1+k1;a_2=a2+k2;
for i=1:N
    x1(i+1)=x1(i)+h*x2(i); %公式（1.4.10）
    x2(i+1)=x2(i)+h*(-a_1*(x1(i)-v0(i).*trns(T0,t(i)))-a_2*(x2(i)-v0(i).*dtrns(T0,t(i))));
    y(i+1)=x1(i+1);
end
subplot(144);plot(t,y,'k','LineWidth',1.5)
hold on;plot(t,v0,'k-.','LineWidth',1)
xlabel('$t/s$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15); % 标注坐标轴
% ylabel('$y$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15);
axis([0,2,-0.2,1.2]); % 设置坐标轴上下限
axis_h=gca;  % 当前轴的句柄
set(axis_h,'Fontname','Times New Roman','Fontsize',15,'LineWidth',0.8)
set(gcf,'Position',[100,162,1080,350]); % 设置图片大小
grid on;set(gca,'GridLineStyle',':','GridColor','k','GridAlpha',1); % 设置网格线为虚线
text(0.05,-0.1,'$k_1=1000,k_2=12$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)

sgtitle('$\ddot x=-(a_1+k_1)(x-v_0 trns(T_0,t))-(a_2+k_2) (\dot x-v_0 dtrns(T_0,t)) \quad (a_1=2,a_2=2,T_0=0.5)$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)

1.4节 7-13

1.4节

图1-4-7
图1-4-7

图1-4-7 Provided by 张聪玮 @2022-04-14
  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
clc,clear,clf
h=0.001;T=4;N=T/h;
n=1:N;t=n*h;
vv1=zeros(1,N);vv2=zeros(1,N);vv3=zeros(1,N);vv4=zeros(1,N);
v0=1;T0=3;

for i=1:N-1
    %% 第一种形式
    if t(i)<=T0
        vv1(i)=v0/T0;
    else
        vv1(i)=0;
    end

    %% 第二种形式
    if t(i)<=T0/2
        vv2(i)=4*v0*t(i)/T0^2;
    elseif (T0/2<t(i)) && (t(i)<=T0)
        vv2(i)=-4*v0*t(i)/T0^2+4*v0/T0;
    else
        vv2(i)=0;
    end

    %% 第三种形式
    if t(i)<=T0
        vv3(i)=-6*v0*t(i).^2/T0^3+6*v0*t(i)/T0^2;
    else
        vv3(i)=0;
    end

    %% 第四种形式
    if t(i)<=T0
        vv4(i)=30*v0*t(i).^4/T0^5-60*v0*t(i).^3/T0^4+30*v0*t(i).^2/T0^3;
    else
        vv4(i)=0;
    end
end

subplot(141);plot(t,vv1,'k','LineWidth',1.5)
xlabel('$t$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15); % 标注坐标轴
ylabel('$v_2(t)$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15);
axis([0,4,0,1]); % 设置坐标轴上下限
set(gca,'XTick',[0:1:4]); %设置要显示坐标刻度
set(gca,'YTick',[0:0.2:1]); %设置要显示坐标刻度
axis_h=gca;  % 当前轴的句柄
set(axis_h,'Fontname','Times New Roman','Fontsize',15,'LineWidth',0.8)
set(gcf,'Position',[200,162,980,350]); % 设置图片大小
grid on;set(gca,'GridLineStyle',':','GridColor','k','GridAlpha',1); % 设置网格线为虚线
text(0.2,0.92,'$t \le T_0$:','Interpreter','Latex','Fontname','Times New Roman','Fontsize',13.5)
text(0.5,0.8,'$v_2(t)=v_0/T_0$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',13.5)
% text(0.2,0.68,'$t > T_0$:','Interpreter','Latex','Fontname','Times New Roman','Fontsize',13.5)
% text(0.5,0.56,'$v_2(t)=0$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',13.5)

subplot(142);plot(t,vv2,'k','LineWidth',1.5)
xlabel('$t$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15); % 标注坐标轴
% ylabel('$v_2(t)$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15);
axis([0,4,0,1.4]); % 设置坐标轴上下限
set(gca,'XTick',[0:1:4]); %设置要显示坐标刻度
set(gca,'YTick',[0:0.2:1.4]); %设置要显示坐标刻度
axis_h=gca;  % 当前轴的句柄
set(axis_h,'Fontname','Times New Roman','Fontsize',15,'LineWidth',0.8)
set(gcf,'Position',[200,162,980,350]); % 设置图片大小
grid on;set(gca,'GridLineStyle',':','GridColor','k','GridAlpha',1); % 设置网格线为虚线
text(0.2,1.3,'$t \le T_0/2$:','Interpreter','Latex','Fontname','Times New Roman','Fontsize',13.5)
text(0.45,1.15,'$v_2(t)=4v_0t/T_0^2$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',13.5)
text(0.2,1,'$T_0/2 < t \le T_0$:','Interpreter','Latex','Fontname','Times New Roman','Fontsize',13.5)
text(0.45,0.85,'$v_2(t)=-4v_0t/T_0^2$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',13.5)
text(2.1,0.7,'$+4v_0/T_0$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',13.5)

subplot(143);plot(t,vv3,'k','LineWidth',1.5)
xlabel('$t$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15); % 标注坐标轴
% ylabel('$v_2(t)$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15);
axis([0,4,0,1]); % 设置坐标轴上下限
set(gca,'XTick',[0:1:4]); %设置要显示坐标刻度
set(gca,'YTick',[0:0.2:1]); %设置要显示坐标刻度
axis_h=gca;  % 当前轴的句柄
set(axis_h,'Fontname','Times New Roman','Fontsize',15,'LineWidth',0.8)
set(gcf,'Position',[200,162,980,350]); % 设置图片大小
grid on;set(gca,'GridLineStyle',':','GridColor','k','GridAlpha',1); % 设置网格线为虚线
text(0.2,0.92,'$t \le T_0$:','Interpreter','Latex','Fontname','Times New Roman','Fontsize',13.5)
text(0.3,0.8,'$v_2(t)=-6v_0t^2/T_0^3$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',13.5)
text(1.9,0.68,'$+6v_0t/T_0^2$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',13.5)


subplot(144);plot(t,vv4,'k','LineWidth',1.5)
xlabel('$t$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15); % 标注坐标轴
% ylabel('$v_2(t)$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15);
axis([0,4,0,1.2]); % 设置坐标轴上下限
set(gca,'XTick',[0:1:4]); %设置要显示坐标刻度
set(gca,'YTick',[0:0.2:1.2]); %设置要显示坐标刻度
axis_h=gca;  % 当前轴的句柄
set(axis_h,'Fontname','Times New Roman','Fontsize',15,'LineWidth',0.8)
set(gcf,'Position',[200,162,980,350]); % 设置图片大小
grid on;set(gca,'GridLineStyle',':','GridColor','k','GridAlpha',1); % 设置网格线为虚线
text(0.2,1.12,'$t \le T_0$:','Interpreter','Latex','Fontname','Times New Roman','Fontsize',13.5)
text(0.3,0.97,'$v_2(t)=30v_0t^4/T_0^5$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',13.5)
text(1.55,0.82,'$-60v_0t^3/T_0^4$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',13.5)
text(1.55,0.67,'$+30v_0t^2/T_0^3$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',13.5)

sgtitle('$v_2(t)=0 \quad (t>T_0) ,\quad v_0=1,T_0=3$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)

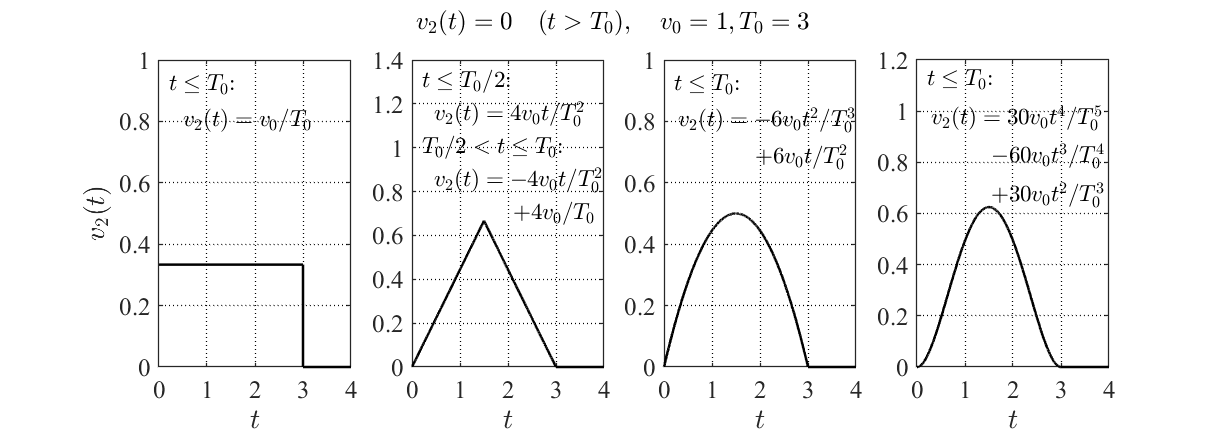

图1-4-8
图1-4-8

图1-4-8 Provided by 张聪玮 @2022-04-14
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89

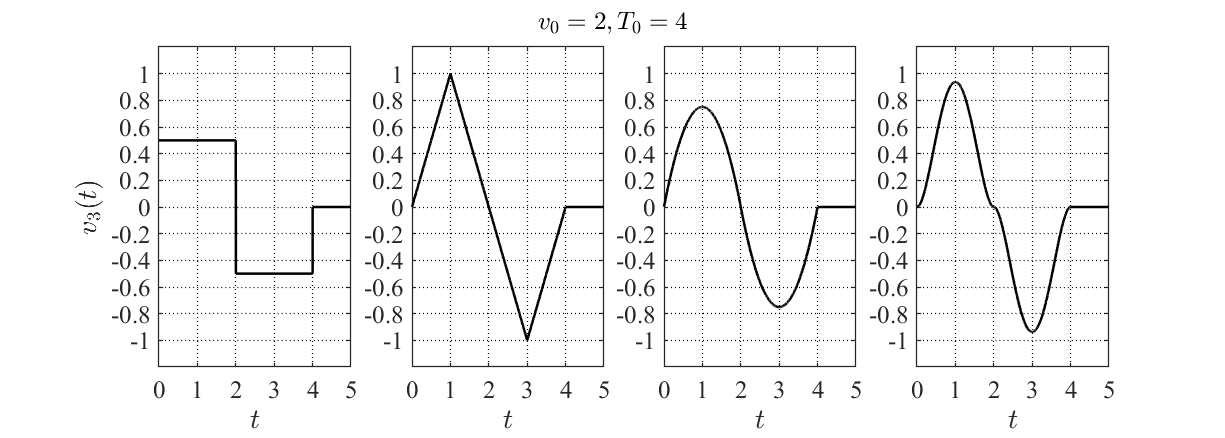

clc,clear,clf
h=0.001;T=5;N=T/h;
n=1:N;t=n*h;
vv1=zeros(1,N);vv2=zeros(1,N);vv3=zeros(1,N);vv4=zeros(1,N);
v0=2;T0=4;

for i=1:N-1
    %% 第一种形式
    if t(i)<=T0/2
        vv1(i)=4*v0/T0^2;
    elseif (T0/2<t(i)) && (t(i)<=T0)
        vv1(i)=-4*v0/T0^2;
    else
        vv1(i)=0;
    end

    %% 第二种形式
    if t(i)<=T0/4
        vv2(i)=8*v0*t(i)/T0^2;
    elseif (T0/4<t(i)) && (t(i)<=3/4*T0)
        vv2(i)=-8*v0*t(i)/T0^2+4*v0/T0;
    elseif (3/4*T0<t(i)) && (t(i)<=T0)
        vv2(i)=8*v0*(t(i)-T0/2)/T0^2-4*v0/T0;
    else
        vv2(i)=0;
    end

    %% 第三种形式
    if t(i)<=T0/2
        vv3(i)=-24*v0*t(i).^2/T0^3+12*v0*t(i)/T0^2;
    elseif (T0/2<t(i)) && (t(i)<=T0)
        vv3(i)=24*v0*(t(i)-T0/2).^2/T0^3-12*v0*(t(i)-T0/2)/T0^2;
    else
        vv3(i)=0;
    end

    %% 第四种形式
    if t(i)<=T0/2
        vv4(i)=480*v0*t(i).^4/T0^5-480*v0*t(i).^3/T0^4+120*v0*t(i).^2/T0^3;
    elseif (T0/2<t(i)) && (t(i)<=T0)
        vv4(i)=-480*v0*(t(i)-T0/2).^4/T0^5+480*v0*(t(i)-T0/2).^3/T0^4-120*v0*(t(i)-T0/2).^2/T0^3;
    else
        vv4(i)=0;
    end
end

subplot(141);plot(t,vv1,'k','LineWidth',1.5)
xlabel('$t$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15); % 标注坐标轴
ylabel('$v_3(t)$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15);
axis([0,5,-1.2,1.2]); % 设置坐标轴上下限
set(gca,'XTick',[0:1:5]); %设置要显示坐标刻度
set(gca,'YTick',[-1:0.2:1]); %设置要显示坐标刻度
axis_h=gca;  % 当前轴的句柄
set(axis_h,'Fontname','Times New Roman','Fontsize',15,'LineWidth',0.8)
set(gcf,'Position',[200,162,980,350]); % 设置图片大小
grid on;set(gca,'GridLineStyle',':','GridColor','k','GridAlpha',1); % 设置网格线为虚线

subplot(142);plot(t,vv2,'k','LineWidth',1.5)
xlabel('$t$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15); % 标注坐标轴
axis([0,5,-1.2,1.2]); % 设置坐标轴上下限
set(gca,'XTick',[0:1:5]); %设置要显示坐标刻度
set(gca,'YTick',[-1:0.2:1]); %设置要显示坐标刻度
axis_h=gca;  % 当前轴的句柄
set(axis_h,'Fontname','Times New Roman','Fontsize',15,'LineWidth',0.8)
set(gcf,'Position',[200,162,980,350]); % 设置图片大小
grid on;set(gca,'GridLineStyle',':','GridColor','k','GridAlpha',1); % 设置网格线为虚线

subplot(143);plot(t,vv3,'k','LineWidth',1.5)
xlabel('$t$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15); % 标注坐标轴
axis([0,5,-1.2,1.2]); % 设置坐标轴上下限
set(gca,'XTick',[0:1:5]); %设置要显示坐标刻度
set(gca,'YTick',[-1:0.2:1]); %设置要显示坐标刻度
axis_h=gca;  % 当前轴的句柄
set(axis_h,'Fontname','Times New Roman','Fontsize',15,'LineWidth',0.8)
set(gcf,'Position',[200,162,980,350]); % 设置图片大小
grid on;set(gca,'GridLineStyle',':','GridColor','k','GridAlpha',1); % 设置网格线为虚线


subplot(144);plot(t,vv4,'k','LineWidth',1.5)
xlabel('$t$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15); % 标注坐标轴
axis([0,5,-1.2,1.2]); % 设置坐标轴上下限
set(gca,'XTick',[0:1:5]); %设置要显示坐标刻度
set(gca,'YTick',[-1:0.2:1]); %设置要显示坐标刻度
axis_h=gca;  % 当前轴的句柄
set(axis_h,'Fontname','Times New Roman','Fontsize',15,'LineWidth',0.8)
set(gcf,'Position',[200,162,980,350]); % 设置图片大小
grid on;set(gca,'GridLineStyle',':','GridColor','k','GridAlpha',1); % 设置网格线为虚线

sgtitle('$v_0=2,T_0=4$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)

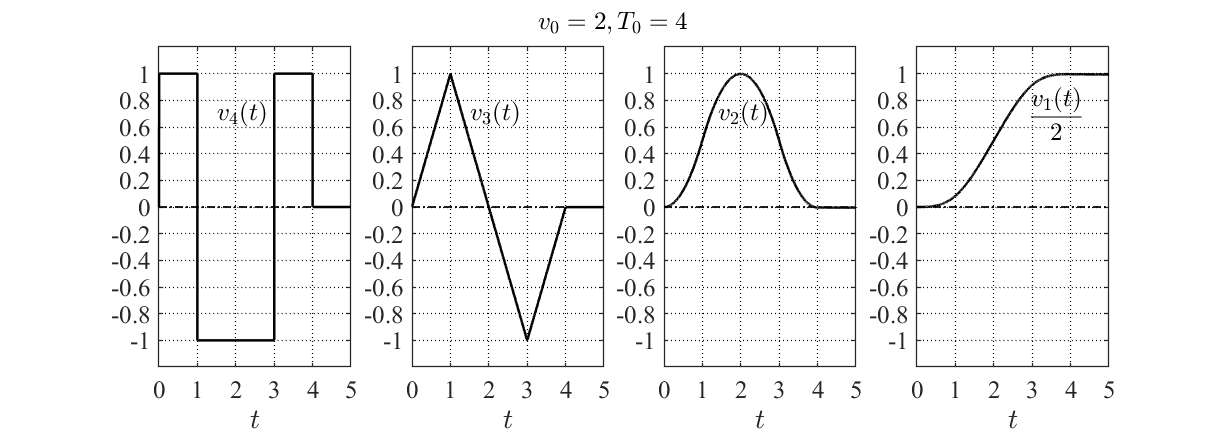

图1-4-9
图1-4-9

图1-4-9 Provided by 张聪玮 @2022-04-14
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
clc,clear,clf
h=0.001;T=5;N=T/h;
n=1:N;t=n*h;
v1=zeros(1,N);v2=zeros(1,N);v3=zeros(1,N);v4=zeros(1,N);
v0=2;T0=4;

for i=2:N-1
    %% 过渡过程的加加速度函数v4(t)
    if t(i)<=T0/4
        v4(i)=32*v0/T0^3;
    elseif (T0/4<t(i)) && (t(i)<=3/4*T0)
        v4(i)=-32*v0/T0^3;
    elseif (3/4*T0<t(i)) && (t(i)<=T0)
        v4(i)=32*v0/T0^3;
    else
        v4(i)=0;
    end

    %% 过渡过程的加速度函数v3(t)
    v3(i)=v3(i-1)+h*v4(i);

    %% 过渡过程的速度函数v2(t)
    v2(i)=v2(i-1)+h*v3(i);

    %% 安排的过渡过程
    v1(i)=v1(i-1)+h*v2(i);

end
v1(N)=v1(N-1);

subplot(141);plot(t,v4,'k','LineWidth',1.5)
hold on;plot([0,5],[0,0],'k-.','LineWidth',1)
xlabel('$t$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15); % 标注坐标轴
% ylabel('$v_4(t)$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15);
axis([0,5,-1.2,1.2]); % 设置坐标轴上下限
set(gca,'XTick',[0:1:5]); %设置要显示坐标刻度
set(gca,'YTick',[-1:0.2:1]); %设置要显示坐标刻度
axis_h=gca;  % 当前轴的句柄
set(axis_h,'Fontname','Times New Roman','Fontsize',15,'LineWidth',0.8)
set(gcf,'Position',[200,162,980,350]); % 设置图片大小
grid on;set(gca,'GridLineStyle',':','GridColor','k','GridAlpha',1); % 设置网格线为虚线
text(1.5,0.7,'$v_4(t)$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)

subplot(142);plot(t,v3,'k','LineWidth',1.5)
hold on;plot([0,5],[0,0],'k-.','LineWidth',1)
xlabel('$t$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15); % 标注坐标轴
% ylabel('$v_3(t)$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15);
axis([0,5,-1.2,1.2]); % 设置坐标轴上下限
set(gca,'XTick',[0:1:5]); %设置要显示坐标刻度
set(gca,'YTick',[-1:0.2:1]); %设置要显示坐标刻度
axis_h=gca;  % 当前轴的句柄
set(axis_h,'Fontname','Times New Roman','Fontsize',15,'LineWidth',0.8)
set(gcf,'Position',[200,162,980,350]); % 设置图片大小
grid on;set(gca,'GridLineStyle',':','GridColor','k','GridAlpha',1); % 设置网格线为虚线
text(1.5,0.7,'$v_3(t)$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)

subplot(143);plot(t,v2,'k','LineWidth',1.5)
hold on;plot([0,5],[0,0],'k-.','LineWidth',1)
xlabel('$t$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15); % 标注坐标轴
% ylabel('$v_2(t)$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15);
axis([0,5,-1.2,1.2]); % 设置坐标轴上下限
set(gca,'XTick',[0:1:5]); %设置要显示坐标刻度
set(gca,'YTick',[-1:0.2:1]); %设置要显示坐标刻度
axis_h=gca;  % 当前轴的句柄
set(axis_h,'Fontname','Times New Roman','Fontsize',15,'LineWidth',0.8)
set(gcf,'Position',[200,162,980,350]); % 设置图片大小
grid on;set(gca,'GridLineStyle',':','GridColor','k','GridAlpha',1); % 设置网格线为虚线
text(1.4,0.7,'$v_2(t)$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)

subplot(144);plot(t,v1/2,'k','LineWidth',1.5)
hold on;plot([0,5],[0,0],'k-.','LineWidth',1)
xlabel('$t$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15); % 标注坐标轴
% ylabel('$v_1(t)/2$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15);
axis([0,5,-1.2,1.2]); % 设置坐标轴上下限
set(gca,'XTick',[0:1:5]); %设置要显示坐标刻度
set(gca,'YTick',[-1:0.2:1]); %设置要显示坐标刻度
axis_h=gca;  % 当前轴的句柄
set(axis_h,'Fontname','Times New Roman','Fontsize',15,'LineWidth',0.8)
set(gcf,'Position',[200,162,980,350]); % 设置图片大小
grid on;set(gca,'GridLineStyle',':','GridColor','k','GridAlpha',1); % 设置网格线为虚线
text(2.9,0.7,'$$\frac{v_1(t)}{2}$$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)

sgtitle('$v_0=2,T_0=4$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)

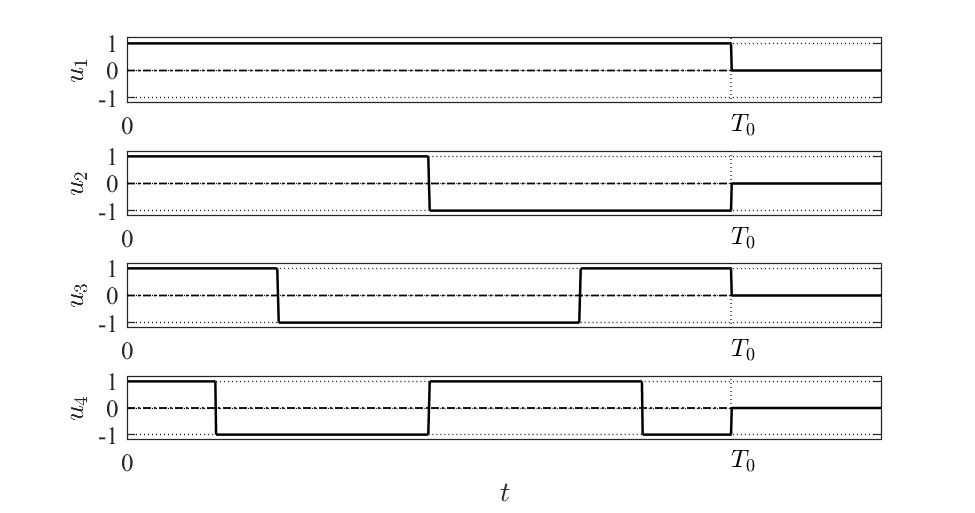

图1-4-10
图1-4-10

图1-4-10 Provided by 张聪玮 @2022-04-14
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
clc,clear,clf
h=0.01;T=10;N=T/h;n=1:N;t=n*h;
u1=zeros(1,N);u2=zeros(1,N);u3=zeros(1,N);u4=zeros(1,N);
T0=8;
for i=1:N-1
    u1(i)=s(t(i),T0);
    u2(i)=-s(t(i)-T0/2,T0/2);
    u3(i)=s(t(i)-T0/4,T0).*s(t(i)-3/4*T0,T0/4);
    u4(i)=-s(t(i)-(2-sqrt(2))/4*T0,T0).*s(t(i)-2/4*T0,T0/2).*s(t(i)-(2+sqrt(2))/4*T0,T0);
end
subplot(411);plot(t,u1,'k','LineWidth',1.5)
hold on;plot([8,8],[-1.2,1.2],'k:','LineWidth',0.8)
hold on;plot([0,10],[0,0],'k-.','LineWidth',1)
ylabel('$u_1$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15);
axis([0,10,-1.2,1.2]); % 设置坐标轴上下限
set(gca,'XTick',[0:11:10]); %设置要显示坐标刻度
set(gca,'YTick',[-1:1:1]); %设置要显示坐标刻度
axis_h=gca;  % 当前轴的句柄
set(axis_h,'Fontname','Times New Roman','Fontsize',15,'LineWidth',0.8)
set(gcf,'Position',[200,162,780,410]); % 设置图片大小
grid on;set(gca,'GridLineStyle',':','GridColor','k','GridAlpha',1); % 设置网格线为虚线
% text(4.5,-0.5,'$u_1$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)
text(8,-2,'$T_0$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)

subplot(412);plot(t,u2,'k','LineWidth',1.5)
hold on;plot([8,8],[-1.2,1.2],'k:','LineWidth',0.8)
hold on;plot([0,10],[0,0],'k-.','LineWidth',1)
ylabel('$u_2$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15);
axis([0,10,-1.2,1.2]); % 设置坐标轴上下限
set(gca,'XTick',[0:11:10]); %设置要显示坐标刻度
set(gca,'YTick',[-1:1:1]); %设置要显示坐标刻度
axis_h=gca;  % 当前轴的句柄
set(axis_h,'Fontname','Times New Roman','Fontsize',15,'LineWidth',0.8)
set(gcf,'Position',[200,162,780,410]); % 设置图片大小
grid on;set(gca,'GridLineStyle',':','GridColor','k','GridAlpha',1); % 设置网格线为虚线
% text(4.5,-0.1,'$u_2$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)
text(8,-2,'$T_0$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)

subplot(413);plot(t,u3,'k','LineWidth',1.5)
hold on;plot([8,8],[-1.2,1.2],'k:','LineWidth',0.8)
hold on;plot([0,10],[0,0],'k-.','LineWidth',1)
ylabel('$u_3$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15);
axis([0,10,-1.2,1.2]); % 设置坐标轴上下限
set(gca,'XTick',[0:11:10]); %设置要显示坐标刻度
set(gca,'YTick',[-1:1:1]); %设置要显示坐标刻度
axis_h=gca;  % 当前轴的句柄
set(axis_h,'Fontname','Times New Roman','Fontsize',15,'LineWidth',0.8)
set(gcf,'Position',[200,162,780,410]); % 设置图片大小
grid on;set(gca,'GridLineStyle',':','GridColor','k','GridAlpha',1); % 设置网格线为虚线
% text(4.5,-0.1,'$u_3$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)
text(8,-2,'$T_0$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)

subplot(414);plot(t,u4,'k','LineWidth',1.5)
hold on;plot([8,8],[-1.2,1.2],'k:','LineWidth',0.8)
hold on;plot([0,10],[0,0],'k-.','LineWidth',1)
xlabel('$t$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15); % 标注坐标轴
ylabel('$u_4$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15);
axis([0,10,-1.2,1.2]); % 设置坐标轴上下限
set(gca,'XTick',[0:11:10]); %设置要显示坐标刻度
set(gca,'YTick',[-1:1:1]); %设置要显示坐标刻度
axis_h=gca;  % 当前轴的句柄
set(axis_h,'Fontname','Times New Roman','Fontsize',15,'LineWidth',0.8)
set(gcf,'Position',[200,162,780,410]); % 设置图片大小
grid on;set(gca,'GridLineStyle',':','GridColor','k','GridAlpha',1); % 设置网格线为虚线
% text(4.5,-0.1,'$u_4$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)
text(8,-2,'$T_0$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)

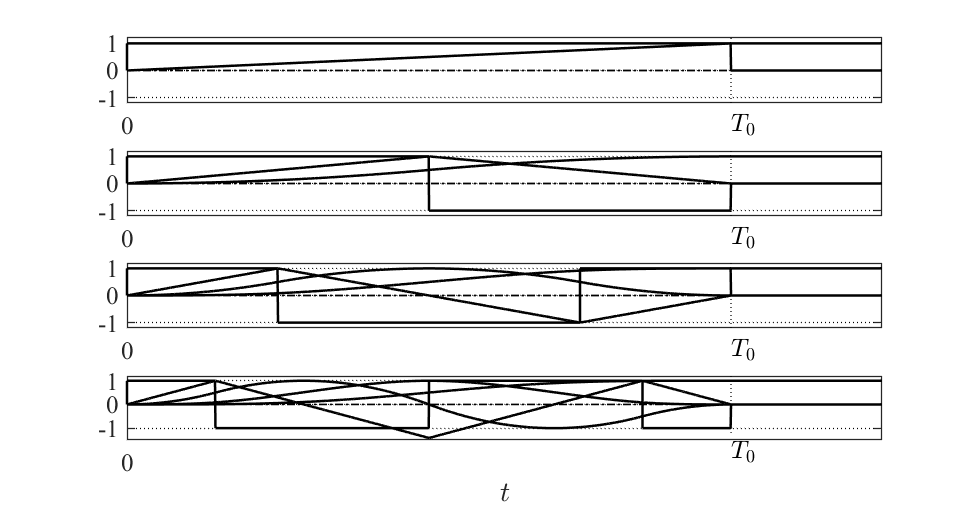

图1-4-11
图1-4-11

图1-4-11 Provided by 张聪玮 @2022-04-14
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
clc,clear,clf
h=0.0001;T=10;
N=T/h;n=1:N;t=n*h;
T0=8;
u1=zeros(1,N);Iu1=zeros(1,N);
u2=zeros(1,N);Iu2=zeros(1,N);I2u2=zeros(1,N);
u3=zeros(1,N);Iu3=zeros(1,N);I2u3=zeros(1,N);I3u3=zeros(1,N);
u4=zeros(1,N);Iu4=zeros(1,N);I2u4=zeros(1,N);I3u4=zeros(1,N);I4u4=zeros(1,N);

for i=2:N-1
    %% 一阶
    u1(i)=s(t(i),T0); %过渡过程的速度信号
    Iu1(i)=Iu1(i-1)+h*u1(i); %安排的过渡过程

    %% 二阶
    u2(i)=-s(t(i)-T0/2,T0/2); %过渡过程的加速度信号
    Iu2(i)=Iu2(i-1)+h*u2(i); %过渡过程的速度信号
    I2u2(i)=I2u2(i-1)+h*Iu2(i); %安排的过渡过程

    %% 三阶
    u3(i)=s(t(i)-T0/4,T0).*s(t(i)-3/4*T0,T0/4); %过渡过程的加加速度信号
    Iu3(i)=Iu3(i-1)+h*u3(i); %过渡过程的加速度信号
    I2u3(i)=I2u3(i-1)+h*Iu3(i); %过渡过程的速度信号
    I3u3(i)=I3u3(i-1)+h*I2u3(i); %安排的过渡过程

    %% 四阶
    u4(i)=-s(t(i)-(2-sqrt(2))/4*T0,T0).*s(t(i)-2/4*T0,T0/2).*s(t(i)-(2+sqrt(2))/4*T0,T0); %过渡过程的加加加速度信号
    Iu4(i)=Iu4(i-1)+h*u4(i); %过渡过程的加加速度信号
    I2u4(i)=I2u4(i-1)+h*Iu4(i); %过渡过程的加速度信号
    I3u4(i)=I3u4(i-1)+h*I2u4(i); %过渡过程的速度信号
    I4u4(i)=I4u4(i-1)+h*I3u4(i); %安排的过渡过程
end
Iu1(N)=Iu1(N-1);
Iu2(N)=Iu2(N-1);I2u2(N)=I2u2(N-1);n1=max(Iu2);
Iu3(N)=Iu3(N-1);I2u3(N)=I2u3(N-1);I3u3(N)=I3u3(N-1);n2=max(Iu3);n3=max(I2u3);
Iu4(N)=Iu4(N-1);I2u4(N)=I2u4(N-1);I3u4(N)=I3u4(N-1);I4u4(N)=I4u4(N-1);n4=max(Iu4);n5=max(I2u4);n6=max(I3u4);

subplot(411);plot(t,u1,'k',t,Iu1/Iu1(N),'k','LineWidth',1.5)
hold on;plot([8,8],[-1.2,1.2],'k:','LineWidth',0.8)
hold on;plot([0,10],[0,0],'k-.','LineWidth',1)
% ylabel('$u_1$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15);
axis([0,10,-1.2,1.2]); % 设置坐标轴上下限
set(gca,'XTick',[0:11:10]); %设置要显示坐标刻度
set(gca,'YTick',[-1:1:1]); %设置要显示坐标刻度
axis_h=gca;  % 当前轴的句柄
set(axis_h,'Fontname','Times New Roman','Fontsize',15,'LineWidth',0.8)
set(gcf,'Position',[200,162,780,410]); % 设置图片大小
grid on;set(gca,'GridLineStyle',':','GridColor','k','GridAlpha',1); % 设置网格线为虚线
% text(4.5,-0.5,'$u_1$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)
text(8,-2,'$T_0$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)

subplot(412);plot(t,u2,'k',t,Iu2/n1,'k',t,I2u2/I2u2(N),'k','LineWidth',1.5)
hold on;plot([8,8],[-1.2,1.2],'k:','LineWidth',0.8)
hold on;plot([0,10],[0,0],'k-.','LineWidth',1)
% ylabel('$u_2$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15);
axis([0,10,-1.2,1.2]); % 设置坐标轴上下限
set(gca,'XTick',[0:11:10]); %设置要显示坐标刻度
set(gca,'YTick',[-1:1:1]); %设置要显示坐标刻度
axis_h=gca;  % 当前轴的句柄
set(axis_h,'Fontname','Times New Roman','Fontsize',15,'LineWidth',0.8)
set(gcf,'Position',[200,162,780,410]); % 设置图片大小
grid on;set(gca,'GridLineStyle',':','GridColor','k','GridAlpha',1); % 设置网格线为虚线
% text(4.5,-0.1,'$u_2$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)
text(8,-2,'$T_0$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)

subplot(413);plot(t,u3,'k',t,Iu3/n2,'k',t,I2u3/n3,'k',t,I3u3/I3u3(N),'k','LineWidth',1.5)
hold on;plot([8,8],[-1.2,1.2],'k:','LineWidth',0.8)
hold on;plot([0,10],[0,0],'k-.','LineWidth',1)
% ylabel('$u_3$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15);
axis([0,10,-1.2,1.2]); % 设置坐标轴上下限
set(gca,'XTick',[0:11:10]); %设置要显示坐标刻度
set(gca,'YTick',[-1:1:1]); %设置要显示坐标刻度
axis_h=gca;  % 当前轴的句柄
set(axis_h,'Fontname','Times New Roman','Fontsize',15,'LineWidth',0.8)
set(gcf,'Position',[200,162,780,410]); % 设置图片大小
grid on;set(gca,'GridLineStyle',':','GridColor','k','GridAlpha',1); % 设置网格线为虚线
% text(4.5,-0.1,'$u_3$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)
text(8,-2,'$T_0$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)

subplot(414);plot(t,u4,'k',t,Iu4/n4,'k',t,I2u4/n5,'k',t,I3u4/n6,'k',t,I4u4/I4u4(N),'k','LineWidth',1.5)
hold on;plot([8,8],[-1.2,1.2],'k:','LineWidth',0.8)
hold on;plot([0,10],[0,0],'k-.','LineWidth',1)
xlabel('$t$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15); % 标注坐标轴
% ylabel('$u_4$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15);
axis([0,10,-1.5,1.2]); % 设置坐标轴上下限
set(gca,'XTick',[0:11:10]); %设置要显示坐标刻度
set(gca,'YTick',[-1:1:1]); %设置要显示坐标刻度
axis_h=gca;  % 当前轴的句柄
set(axis_h,'Fontname','Times New Roman','Fontsize',15,'LineWidth',0.8)
set(gcf,'Position',[200,162,780,410]); % 设置图片大小
grid on;set(gca,'GridLineStyle',':','GridColor','k','GridAlpha',1); % 设置网格线为虚线
% text(4.5,-0.1,'$u_4$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)
text(8,-2,'$T_0$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)

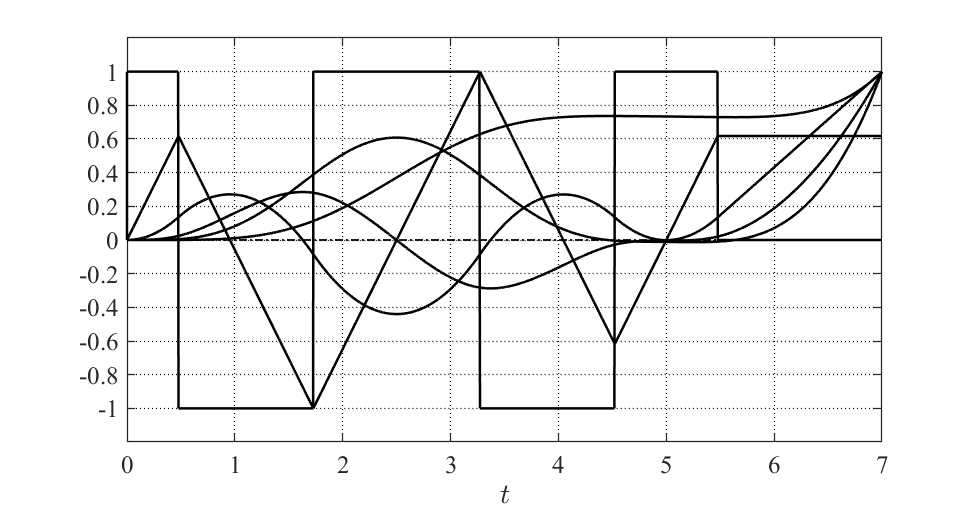

图1-4-12
图1-4-12

图1-4-12 Provided by 张聪玮 @2022-04-14
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
clc,clear,clf
h=0.0001;T=7;
N=T/h;n=1:N;t=n*h;
T0=5;
u5=zeros(1,N);Iu5=zeros(1,N);I2u5=zeros(1,N);I3u5=zeros(1,N);I4u5=zeros(1,N);I5u5=zeros(1,N);

for i=2:N-1
    u5(i)=s(t(i)-0.095475*T0,T0).*s(t(i)-0.345475*T0,T0).*s(t(i)-0.654525*T0,T0).*s(t(i)-0.904525*T0,T0); %过渡过程的加加加加速度信号
    Iu5(i)=Iu5(i-1)+h*u5(i); %过渡过程的加加加速度信号
    I2u5(i)=I2u5(i-1)+h*Iu5(i); %过渡过程的加加速度信号
    I3u5(i)=I3u5(i-1)+h*I2u5(i); %过渡过程的加速度信号
    I4u5(i)=I4u5(i-1)+h*I3u5(i); %过渡过程的速度信号
    I5u5(i)=I5u5(i-1)+h*I4u5(i); %安排的过渡过程
end
Iu5(N)=Iu5(N-1);I2u5(N)=I2u5(N-1);I3u5(N)=I3u5(N-1);I4u5(N)=I4u5(N-1);I5u5(N)=I5u5(N-1);
n1=max(Iu5);n2=max(I2u5);n3=max(I3u5);n4=max(I4u5);

plot(t,u5,'k',t,Iu5/n1,'k',t,I2u5/n2,'k',t,I3u5/n3,'k',t,I4u5/n4,'k',t,I5u5/I5u5(N),'k','LineWidth',1.5)
hold on;plot([0,7],[0,0],'k-.','LineWidth',1)
xlabel('$t$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15); % 标注坐标轴
axis([0,7,-1.2,1.2]); % 设置坐标轴上下限
set(gca,'XTick',[0:1:7]); %设置要显示坐标刻度
set(gca,'YTick',[-1:0.2:1]); %设置要显示坐标刻度
axis_h=gca;  % 当前轴的句柄
set(axis_h,'Fontname','Times New Roman','Fontsize',15,'LineWidth',0.8)
set(gcf,'Position',[200,162,780,410]); % 设置图片大小
grid on;set(gca,'GridLineStyle',':','GridColor','k','GridAlpha',1); % 设置网格线为虚线

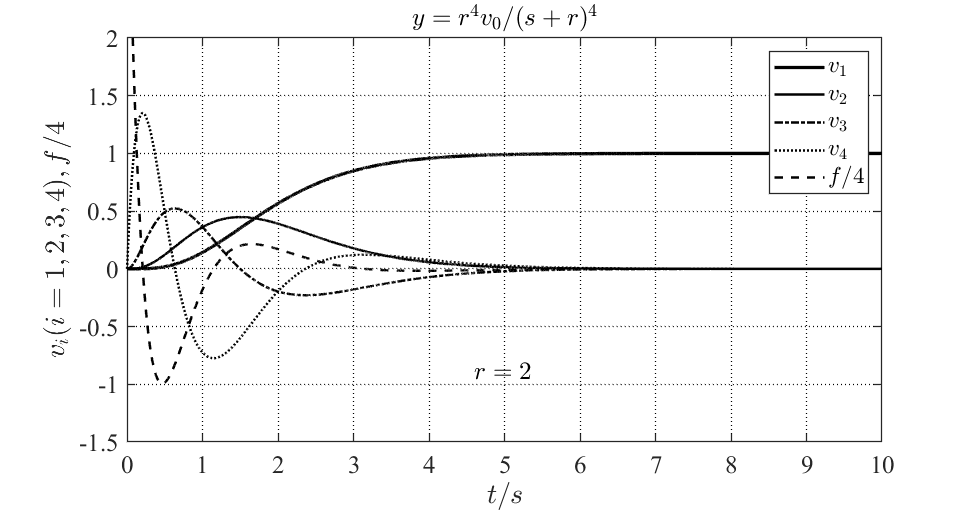

图1-4-13
图1-4-13

图1-4-13 Provided by 张聪玮 @2022-04-14
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
clc,clear,clf
h=0.001;T=10;N=T/h;
n=1:N;t=n*h;
v0=1;r=2;
v1=zeros(1,N);v2=zeros(1,N);v3=zeros(1,N);v4=zeros(1,N);f=zeros(1,N);

for i=1:N-1
    f(i)=-r*(r*(r*(r*(v1(i)-v0)+4*v2(i))+6*v3(i))+4*v4(i));
    v1(i+1)=v1(i)+h*v2(i);
    v2(i+1)=v2(i)+h*v3(i);
    v3(i+1)=v3(i)+h*v4(i);
    v4(i+1)=v4(i)+h*f(i);

end
t(N)=N*h;
plot(t,v1,'k','LineWidth',2)
hold on;plot(t,v2,'k',t,v3,'k-.',t,v4,'k:',t,f/4,'k--','LineWidth',1.5)
xlabel('$t/s$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15); % 标注坐标轴
ylabel('$v_i (i=1,2,3,4) , f/4$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15);
axis([0,10,-1.5,2]); % 设置坐标轴上下限
axis_h=gca;  % 当前轴的句柄
set(axis_h,'Fontname','Times New Roman','Fontsize',15,'LineWidth',0.8)
set(gcf,'Position',[200,162,780,410]); % 设置图片大小
grid on;set(gca,'GridLineStyle',':','GridColor','k','GridAlpha',1); % 设置网格线为虚线
legend('$v_1$','$v_2$','$v_3$','$v_4$','$f/4$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',13.5); %图例
text(4.6,-0.9,'$r=2$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)


title('$y=r^4v_0/(s+r)^4$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)

1.5节

1.5节

图1-5-1
图1-5-1

图1-5-1 Provided by 张聪玮 @2022-04-14
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
%一阶系统阶跃响应速度与r的关系（成正比）
clc,clear,clf
h=0.001;T=6;N=T/h;
n=0:N;t=n*h;
% v0=ones(1,N);
t0 = 0; % t0表示阶跃信号突变的时刻
v0 = stepfun(t,t0); % 输入单位阶跃信号
x1=zeros(1,N);
%% r=1
r=1;
for i=1:N
    x1(i+1)=x1(i)+h*(-r*(x1(i)-v0(i)));
    y(i+1)=x1(i+1);
end
subplot(211);plot(t,y,'k','LineWidth',1.5)
% xlabel('$t/s$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15); % 标注坐标轴
ylabel('$y$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15);
axis([0,6,0,1]); % 设置坐标轴上下限
axis_h=gca;  % 当前轴的句柄
set(axis_h,'Fontname','Times New Roman','Fontsize',15,'LineWidth',0.8)
set(gcf,'Position',[200,162,480,350]); % 设置图片大小
grid on;set(gca,'GridLineStyle',':','GridColor','k','GridAlpha',1); % 设置网格线为虚线
text(2.5,0.25,'$r=1$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)

%% r=5
r=5;
for i=1:N
    x1(i+1)=x1(i)+h*(-r*(x1(i)-v0(i)));
    y(i+1)=x1(i+1);
end
subplot(212);plot(t,y,'k','LineWidth',1.5)
xlabel('$t/s$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15); % 标注坐标轴
ylabel('$y$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15);
axis([0,6,0,1]); % 设置坐标轴上下限
axis_h=gca;  % 当前轴的句柄
set(axis_h,'Fontname','Times New Roman','Fontsize',15,'LineWidth',0.8)
set(gcf,'Position',[200,162,480,350]); % 设置图片大小
grid on;set(gca,'GridLineStyle',':','GridColor','k','GridAlpha',1); % 设置网格线为虚线
text(2.5,0.25,'$r=5$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)


sgtitle('$\dot x=-r(x-v_0)$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)

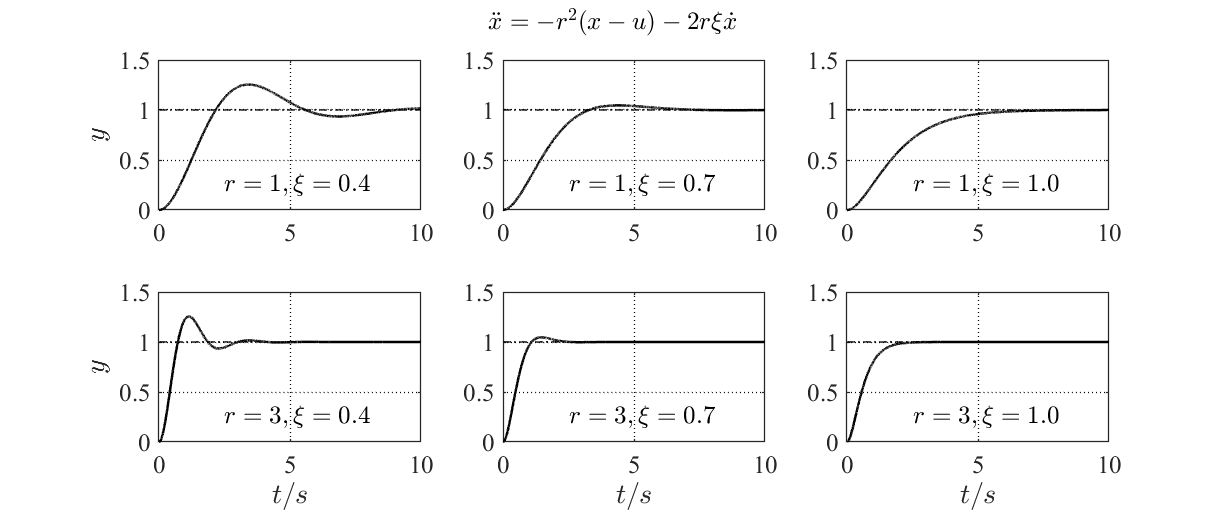

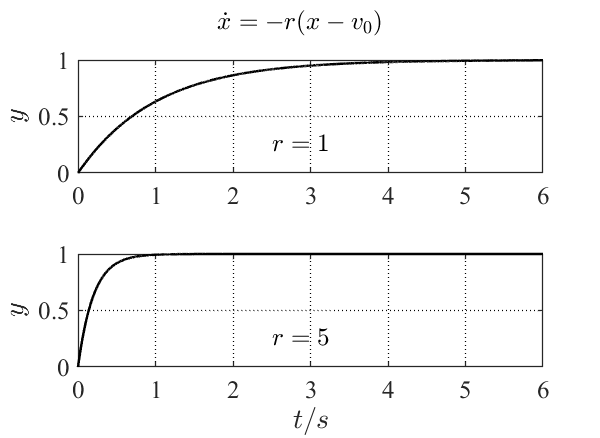

图1-5-2
图1-5-2

图1-5-2 Provided by 张聪玮 @2022-04-14
  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
%二阶系统阶跃响应速度与r的关系（成正比）
clc,clear,clf
h=0.001;T=10;N=T/h;
n=0:N;t=n*h;
% v0=ones(1,N);
t0 = 0; % t0表示阶跃信号突变的时刻
v0 = stepfun(t,t0); % 输入单位阶跃信号
x1=zeros(1,N);x2=zeros(1,N);
%% r=1,xi=0.4
r=1;xi=0.4;
for i=1:N
    x1(i+1)=x1(i)+h*x2(i);
    x2(i+1)=x2(i)+h*(-r^2*(x1(i)-v0(i))-2*r*xi*x2(i));
    y(i+1)=x1(i+1);
end
subplot(231);plot(t,y,'k','LineWidth',1.5)
hold on;plot(t,v0,'k-.','LineWidth',1)
% xlabel('$t/s$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15); % 标注坐标轴
ylabel('$y$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15);
axis([0,10,0,1.5]); % 设置坐标轴上下限
axis_h=gca;  % 当前轴的句柄
set(axis_h,'Fontname','Times New Roman','Fontsize',15,'LineWidth',0.8)
set(gcf,'Position',[100,162,980,410]); % 设置图片大小
grid on;set(gca,'GridLineStyle',':','GridColor','k','GridAlpha',1); % 设置网格线为虚线
text(2.5,0.25,'$r=1,\xi=0.4$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)

%% r=1,xi=0.7
r=1;xi=0.7;
for i=1:N
    x1(i+1)=x1(i)+h*x2(i);
    x2(i+1)=x2(i)+h*(-r^2*(x1(i)-v0(i))-2*r*xi*x2(i));
    y(i+1)=x1(i+1);
end
subplot(232);plot(t,y,'k','LineWidth',1.5)
hold on;plot(t,v0,'k-.','LineWidth',1)
% xlabel('$t/s$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15); % 标注坐标轴
% ylabel('$y$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15);
axis([0,10,0,1.5]); % 设置坐标轴上下限
axis_h=gca;  % 当前轴的句柄
set(axis_h,'Fontname','Times New Roman','Fontsize',15,'LineWidth',0.8)
set(gcf,'Position',[100,162,980,410]); % 设置图片大小
grid on;set(gca,'GridLineStyle',':','GridColor','k','GridAlpha',1); % 设置网格线为虚线
text(2.5,0.25,'$r=1,\xi=0.7$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)

%% r=1,xi=1.0
r=1;xi=1.0;
for i=1:N
    x1(i+1)=x1(i)+h*x2(i);
    x2(i+1)=x2(i)+h*(-r^2*(x1(i)-v0(i))-2*r*xi*x2(i));
    y(i+1)=x1(i+1);
end
subplot(233);plot(t,y,'k','LineWidth',1.5)
hold on;plot(t,v0,'k-.','LineWidth',1)
% xlabel('$t/s$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15); % 标注坐标轴
% ylabel('$y$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15);
axis([0,10,0,1.5]); % 设置坐标轴上下限
axis_h=gca;  % 当前轴的句柄
set(axis_h,'Fontname','Times New Roman','Fontsize',15,'LineWidth',0.8)
set(gcf,'Position',[100,162,980,410]); % 设置图片大小
grid on;set(gca,'GridLineStyle',':','GridColor','k','GridAlpha',1); % 设置网格线为虚线
text(2.5,0.25,'$r=1,\xi=1.0$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)

%% r=3,xi=0.4
r=3;xi=0.4;
for i=1:N
    x1(i+1)=x1(i)+h*x2(i);
    x2(i+1)=x2(i)+h*(-r^2*(x1(i)-v0(i))-2*r*xi*x2(i));
    y(i+1)=x1(i+1);
end
subplot(234);plot(t,y,'k','LineWidth',1.5)
hold on;plot(t,v0,'k-.','LineWidth',1)
xlabel('$t/s$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15); % 标注坐标轴
ylabel('$y$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15);
axis([0,10,0,1.5]); % 设置坐标轴上下限
axis_h=gca;  % 当前轴的句柄
set(axis_h,'Fontname','Times New Roman','Fontsize',15,'LineWidth',0.8)
set(gcf,'Position',[100,162,980,410]); % 设置图片大小
grid on;set(gca,'GridLineStyle',':','GridColor','k','GridAlpha',1); % 设置网格线为虚线
text(2.5,0.25,'$r=3,\xi=0.4$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)

%% r=3,xi=0.7
r=3;xi=0.7;
for i=1:N
    x1(i+1)=x1(i)+h*x2(i);
    x2(i+1)=x2(i)+h*(-r^2*(x1(i)-v0(i))-2*r*xi*x2(i));
    y(i+1)=x1(i+1);
end
subplot(235);plot(t,y,'k','LineWidth',1.5)
hold on;plot(t,v0,'k-.','LineWidth',1)
xlabel('$t/s$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15); % 标注坐标轴
% ylabel('$y$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15);
axis([0,10,0,1.5]); % 设置坐标轴上下限
axis_h=gca;  % 当前轴的句柄
set(axis_h,'Fontname','Times New Roman','Fontsize',15,'LineWidth',0.8)
set(gcf,'Position',[100,162,980,410]); % 设置图片大小
grid on;set(gca,'GridLineStyle',':','GridColor','k','GridAlpha',1); % 设置网格线为虚线
text(2.5,0.25,'$r=3,\xi=0.7$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)

%% r=3,xi=1.0
r=3;xi=1.0;
for i=1:N
    x1(i+1)=x1(i)+h*x2(i);
    x2(i+1)=x2(i)+h*(-r^2*(x1(i)-v0(i))-2*r*xi*x2(i));
    y(i+1)=x1(i+1);
end
subplot(236);plot(t,y,'k','LineWidth',1.5)
hold on;plot(t,v0,'k-.','LineWidth',1)
xlabel('$t/s$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15); % 标注坐标轴
% ylabel('$y$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15);
axis([0,10,0,1.5]); % 设置坐标轴上下限
axis_h=gca;  % 当前轴的句柄
set(axis_h,'Fontname','Times New Roman','Fontsize',15,'LineWidth',0.8)
set(gcf,'Position',[100,162,980,410]); % 设置图片大小
grid on;set(gca,'GridLineStyle',':','GridColor','k','GridAlpha',1); % 设置网格线为虚线
text(2.5,0.25,'$r=3,\xi=1.0$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)

sgtitle('$\ddot x=-r^2(x-u)-2r\xi \dot x$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)

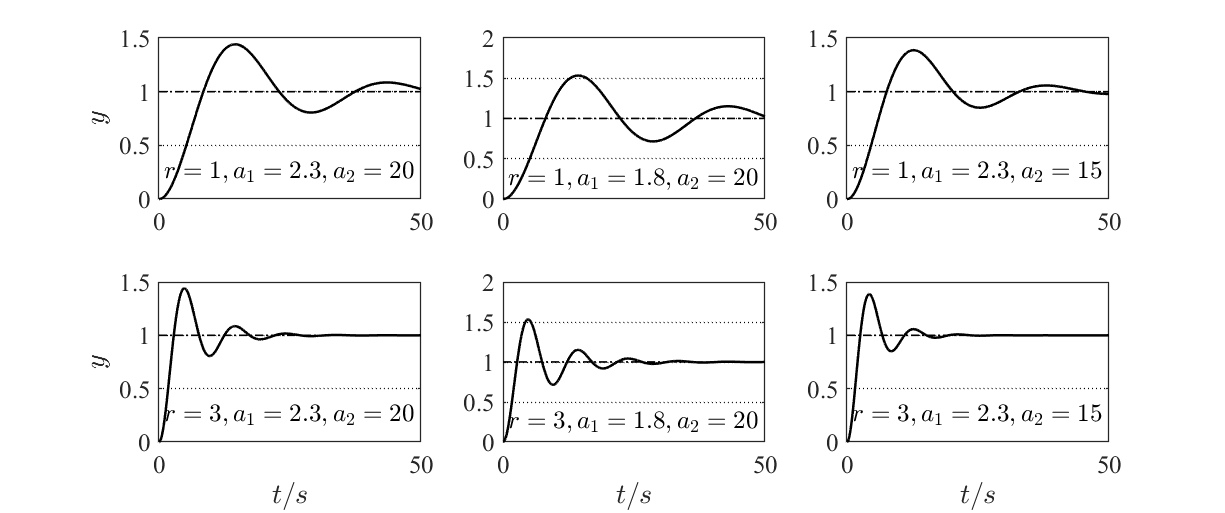

图1-5-3
图1-5-3

图1-5-3 Provided by 张聪玮 @2022-04-14
  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
%三阶系统阶跃响应速度与r的关系（成正比）
clc,clear,clf
h=0.001;T=50;N=T/h;
n=0:N;t=n*h;
% v0=ones(1,N);
t0 = 0; % t0表示阶跃信号突变的时刻
v0 = stepfun(t,t0); % 输入单位阶跃信号
x1=zeros(1,N);x2=zeros(1,N);x3=zeros(1,N);
%% r=1,a1=2.3,a2=20
r=1;a1=2.3;a2=20;
for i=1:N
    x1(i+1)=x1(i)+h*x2(i);
    x2(i+1)=x2(i)+h*x3(i);
    x3(i+1)=x3(i)+h*(-r^3*(x1(i)-v0(i))-r^2*a1*x2(i)-r*a2*x3(i));
    y(i+1)=x1(i+1);
end
subplot(231);plot(t,y,'k','LineWidth',1.5)
hold on;plot(t,v0,'k-.','LineWidth',1)
% xlabel('$t/s$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15); % 标注坐标轴
ylabel('$y$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15);
axis([0,50,0,1.5]); % 设置坐标轴上下限
set(gca,'XTick',[0:50:50]); %设置要显示坐标刻度
set(gca,'YTick',[0:0.5:1.5]); %设置要显示坐标刻度
axis_h=gca;  % 当前轴的句柄
set(axis_h,'Fontname','Times New Roman','Fontsize',15,'LineWidth',0.8)
set(gcf,'Position',[100,162,980,410]); % 设置图片大小
grid on;set(gca,'GridLineStyle',':','GridColor','k','GridAlpha',1); % 设置网格线为虚线
text(1,0.25,'$r=1,a_1=2.3,a_2=20$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)

%% r=1,a1=1.8,a2=20
r=1;a1=1.8;a2=20;
for i=1:N
    x1(i+1)=x1(i)+h*x2(i);
    x2(i+1)=x2(i)+h*x3(i);
    x3(i+1)=x3(i)+h*(-r^3*(x1(i)-v0(i))-r^2*a1*x2(i)-r*a2*x3(i));
    y(i+1)=x1(i+1);
end
subplot(232);plot(t,y,'k','LineWidth',1.5)
hold on;plot(t,v0,'k-.','LineWidth',1)
% xlabel('$t/s$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15); % 标注坐标轴
% ylabel('$y$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15);
axis([0,50,0,2]); % 设置坐标轴上下限
set(gca,'XTick',[0:50:50]); %设置要显示坐标刻度
set(gca,'YTick',[0:0.5:2]); %设置要显示坐标刻度
axis_h=gca;  % 当前轴的句柄
set(axis_h,'Fontname','Times New Roman','Fontsize',15,'LineWidth',0.8)
set(gcf,'Position',[100,162,980,410]); % 设置图片大小
grid on;set(gca,'GridLineStyle',':','GridColor','k','GridAlpha',1); % 设置网格线为虚线
text(1,0.25,'$r=1,a_1=1.8,a_2=20$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)

%% r=1,a1=2.3,a2=15
r=1;a1=2.3;a2=15;
for i=1:N
    x1(i+1)=x1(i)+h*x2(i);
    x2(i+1)=x2(i)+h*x3(i);
    x3(i+1)=x3(i)+h*(-r^3*(x1(i)-v0(i))-r^2*a1*x2(i)-r*a2*x3(i));
    y(i+1)=x1(i+1);
end
subplot(233);plot(t,y,'k','LineWidth',1.5)
hold on;plot(t,v0,'k-.','LineWidth',1)
% xlabel('$t/s$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15); % 标注坐标轴
% ylabel('$y$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15);
axis([0,50,0,1.5]); % 设置坐标轴上下限
set(gca,'XTick',[0:50:50]); %设置要显示坐标刻度
set(gca,'YTick',[0:0.5:1.5]); %设置要显示坐标刻度
axis_h=gca;  % 当前轴的句柄
set(axis_h,'Fontname','Times New Roman','Fontsize',15,'LineWidth',0.8)
set(gcf,'Position',[100,162,980,410]); % 设置图片大小
grid on;set(gca,'GridLineStyle',':','GridColor','k','GridAlpha',1); % 设置网格线为虚线
text(1,0.25,'$r=1,a_1=2.3,a_2=15$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)

%% r=3,a1=2.3,a2=20
r=3;a1=2.3;a2=20;
for i=1:N
    x1(i+1)=x1(i)+h*x2(i);
    x2(i+1)=x2(i)+h*x3(i);
    x3(i+1)=x3(i)+h*(-r^3*(x1(i)-v0(i))-r^2*a1*x2(i)-r*a2*x3(i));
    y(i+1)=x1(i+1);
end
subplot(234);plot(t,y,'k','LineWidth',1.5)
hold on;plot(t,v0,'k-.','LineWidth',1)
xlabel('$t/s$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15); % 标注坐标轴
ylabel('$y$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15);
axis([0,50,0,1.5]); % 设置坐标轴上下限
set(gca,'XTick',[0:50:50]); %设置要显示坐标刻度
set(gca,'YTick',[0:0.5:1.5]); %设置要显示坐标刻度
axis_h=gca;  % 当前轴的句柄
set(axis_h,'Fontname','Times New Roman','Fontsize',15,'LineWidth',0.8)
set(gcf,'Position',[100,162,980,410]); % 设置图片大小
grid on;set(gca,'GridLineStyle',':','GridColor','k','GridAlpha',1); % 设置网格线为虚线
text(1,0.25,'$r=3,a_1=2.3,a_2=20$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)

%% r=3,a1=1.8,a2=20
r=3;a1=1.8;a2=20;
for i=1:N
    x1(i+1)=x1(i)+h*x2(i);
    x2(i+1)=x2(i)+h*x3(i);
    x3(i+1)=x3(i)+h*(-r^3*(x1(i)-v0(i))-r^2*a1*x2(i)-r*a2*x3(i));
    y(i+1)=x1(i+1);
end
subplot(235);plot(t,y,'k','LineWidth',1.5)
hold on;plot(t,v0,'k-.','LineWidth',1)
xlabel('$t/s$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15); % 标注坐标轴
% ylabel('$y$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15);
axis([0,50,0,2]); % 设置坐标轴上下限
set(gca,'XTick',[0:50:50]); %设置要显示坐标刻度
set(gca,'YTick',[0:0.5:2]); %设置要显示坐标刻度
axis_h=gca;  % 当前轴的句柄
set(axis_h,'Fontname','Times New Roman','Fontsize',15,'LineWidth',0.8)
set(gcf,'Position',[100,162,980,410]); % 设置图片大小
grid on;set(gca,'GridLineStyle',':','GridColor','k','GridAlpha',1); % 设置网格线为虚线
text(1,0.25,'$r=3,a_1=1.8,a_2=20$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)

%% r=3,a1=2.3,a2=15
r=3;a1=2.3;a2=15;
for i=1:N
    x1(i+1)=x1(i)+h*x2(i);
    x2(i+1)=x2(i)+h*x3(i);
    x3(i+1)=x3(i)+h*(-r^3*(x1(i)-v0(i))-r^2*a1*x2(i)-r*a2*x3(i));
    y(i+1)=x1(i+1);
end
subplot(236);plot(t,y,'k','LineWidth',1.5)
hold on;plot(t,v0,'k-.','LineWidth',1)
xlabel('$t/s$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15); % 标注坐标轴
% ylabel('$y$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15);
axis([0,50,0,1.5]); %设置坐标轴上下限
set(gca,'XTick',[0:50:50]); %设置要显示坐标刻度
set(gca,'YTick',[0:0.5:1.5]); %设置要显示坐标刻度
axis_h=gca;  % 当前轴的句柄
set(axis_h,'Fontname','Times New Roman','Fontsize',15,'LineWidth',0.8)
set(gcf,'Position',[100,162,980,410]); % 设置图片大小
grid on;set(gca,'GridLineStyle',':','GridColor','k','GridAlpha',1); % 设置网格线为虚线
text(1,0.25,'$r=3,a_1=2.3,a_2=15$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)

%下面一行代码在latex中运行正常，在matlab中运行有误
% sgtitle('${\dddot x}=-r^3(x-u)-r^2 a_1 \dot x -r a_2 \ddot x$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)

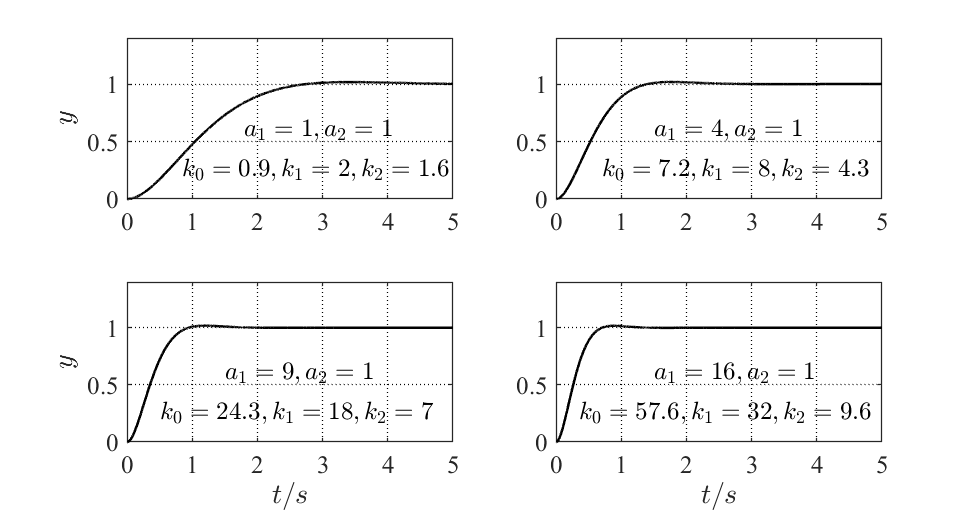

图1-5-4
图1-5-4

图1-5-4 Provided by 张聪玮 @2022-04-14
  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
%时间尺度
clc,clear,clf
h=0.001;T=5;N=T/h;
n=1:N;t=n*h;
v0=1;
a2=1;
x1=zeros(1,N);x2=zeros(1,N);
e=zeros(1,N);De=zeros(1,N);e0=zeros(1,N); %误差，误差的微分，误差的积分
e(1)=v0(1);De(1)=0;e0(1)=0;

%% 第一组参数
a1=1;k0=0.9;k1=2.0;k2=1.6;
for i=2:N-1
    e(i)=v0-x1(i); %误差
    De(i)=(e(i)-e(i-1))/h; %误差的微分（差分）
    e0(i)=e0(i-1)+h*e(i); %误差的积分
    u(i+1)=k1*e(i)+k0*e0(i)+k2*De(i);

    x1(i+1)=x1(i)+h*x2(i);
    x2(i+1)=x2(i)+h*(-a1*x1(i)-a2*x2(i)+u(i+1));
    y(i+1)=x1(i+1);
end
t(N)=N*h;
subplot(221);plot(t,y,'k','LineWidth',1.5)
% xlabel('$t/s$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15); % 标注坐标轴
ylabel('$y$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15);
axis([0,5,0,1.4]); % 设置坐标轴上下限
axis_h=gca;  % 当前轴的句柄
set(axis_h,'Fontname','Times New Roman','Fontsize',15,'LineWidth',0.8)
set(gcf,'Position',[200,162,780,410]); % 设置图片大小
grid on;set(gca,'GridLineStyle',':','GridColor','k','GridAlpha',1); % 设置网格线为虚线
text(1.8,0.6,'$a_1=1,a_2=1$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)
text(0.85,0.25,'$k_0=0.9,k_1=2,k_2=1.6$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)

%% 第二组参数
a1=4;k0=7.2;k1=8.0;k2=4.3;
for i=2:N-1
    e(i)=v0-x1(i); %误差
    De(i)=(e(i)-e(i-1))/h; %误差的微分（差分）
    e0(i)=e0(i-1)+h*e(i); %误差的积分
    u(i+1)=k1*e(i)+k0*e0(i)+k2*De(i);

    x1(i+1)=x1(i)+h*x2(i);
    x2(i+1)=x2(i)+h*(-a1*x1(i)-a2*x2(i)+u(i+1));
    y(i+1)=x1(i+1);
end
t(N)=N*h;
subplot(222);plot(t,y,'k','LineWidth',1.5)
% xlabel('$t/s$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15); % 标注坐标轴
% ylabel('$y$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15);
axis([0,5,0,1.4]); % 设置坐标轴上下限
axis_h=gca;  % 当前轴的句柄
set(axis_h,'Fontname','Times New Roman','Fontsize',15,'LineWidth',0.8)
set(gcf,'Position',[200,162,780,410]); % 设置图片大小
grid on;set(gca,'GridLineStyle',':','GridColor','k','GridAlpha',1); % 设置网格线为虚线
text(1.5,0.6,'$a_1=4,a_2=1$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)
text(0.7,0.25,'$k_0=7.2,k_1=8,k_2=4.3$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)

%% 第三组参数
a1=9;k0=24.3;k1=18.0;k2=7.0;
for i=2:N-1
    e(i)=v0-x1(i); %误差
    De(i)=(e(i)-e(i-1))/h; %误差的微分（差分）
    e0(i)=e0(i-1)+h*e(i); %误差的积分
    u(i+1)=k1*e(i)+k0*e0(i)+k2*De(i);

    x1(i+1)=x1(i)+h*x2(i);
    x2(i+1)=x2(i)+h*(-a1*x1(i)-a2*x2(i)+u(i+1));
    y(i+1)=x1(i+1);
end
t(N)=N*h;
subplot(223);plot(t,y,'k','LineWidth',1.5)
xlabel('$t/s$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15); % 标注坐标轴
ylabel('$y$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15);
axis([0,5,0,1.4]); % 设置坐标轴上下限
axis_h=gca;  % 当前轴的句柄
set(axis_h,'Fontname','Times New Roman','Fontsize',15,'LineWidth',0.8)
set(gcf,'Position',[200,162,780,410]); % 设置图片大小
grid on;set(gca,'GridLineStyle',':','GridColor','k','GridAlpha',1); % 设置网格线为虚线
text(1.5,0.6,'$a_1=9,a_2=1$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)
text(0.5,0.25,'$k_0=24.3,k_1=18,k_2=7$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)

%% 第四组参数
a1=16;k0=57.6;k1=32;k2=9.6;
for i=2:N-1
    e(i)=v0-x1(i); %误差
    De(i)=(e(i)-e(i-1))/h; %误差的微分（差分）
    e0(i)=e0(i-1)+h*e(i); %误差的积分
    u(i+1)=k1*e(i)+k0*e0(i)+k2*De(i);

    x1(i+1)=x1(i)+h*x2(i);
    x2(i+1)=x2(i)+h*(-a1*x1(i)-a2*x2(i)+u(i+1));
    y(i+1)=x1(i+1);
end
t(N)=N*h;
subplot(224);plot(t,y,'k','LineWidth',1.5)
xlabel('$t/s$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15); % 标注坐标轴
% ylabel('$y$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15);
axis([0,5,0,1.4]); % 设置坐标轴上下限
axis_h=gca;  % 当前轴的句柄
set(axis_h,'Fontname','Times New Roman','Fontsize',15,'LineWidth',0.8)
set(gcf,'Position',[200,162,780,410]); % 设置图片大小
grid on;set(gca,'GridLineStyle',':','GridColor','k','GridAlpha',1); % 设置网格线为虚线
text(1.5,0.6,'$a_1=16,a_2=1$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)
text(0.35,0.25,'$k_0=57.6,k_1=32,k_2=9.6$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)


% sgtitle('$\ddot x=-a_1 (x-u)-a_2 \dot x$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)

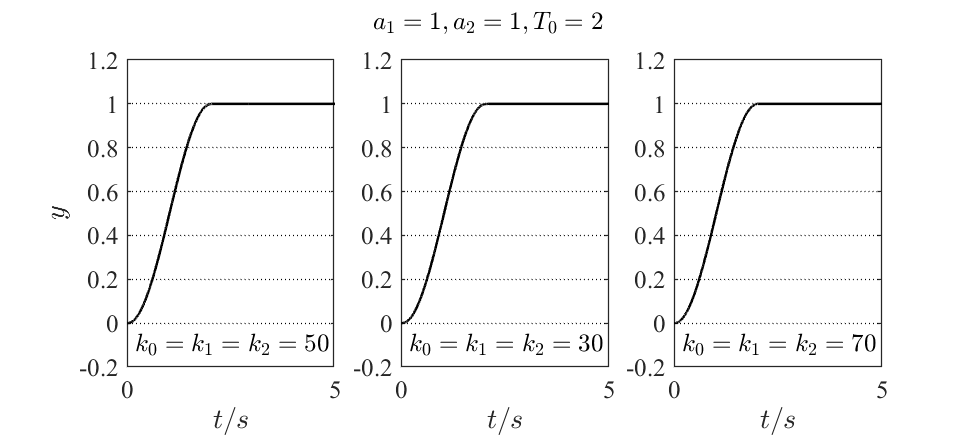

图1-5-5
图1-5-5

图1-5-5 Provided by 张聪玮 @2022-04-14
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
%二阶对象
clc,clear,clf
h=0.001;T=5;N=T/h;
n=1:N;t=n*h;
t0=0; %t0表示阶跃信号突变的时刻
v0=stepfun(t,t0); %输入单位阶跃信号
a1=1;a2=1;T0=2;
e0=zeros(1,N);e1=zeros(1,N);e2=zeros(1,N);
v=zeros(1,N);dv=zeros(1,N);ddv=zeros(1,N);w=zeros(1,N);

%% 第一组参数
k0=50;k1=50;k2=50;
for i=2:N-1
    v(i)=v0(i).*trns(T0,t(i));
    dv(i)=v0(i).*dtrns(T0,t(i));
    ddv(i)=v0(i).*ddtrns(T0,t(i));
    w(i)=ddv(i)+a2*dv(i)+a1*v(i);

    e0(i+1)=e0(i)+h*e1(i);
    e1(i+1)=e1(i)+h*e2(i);
    e2(i+1)=e2(i)+h*(-k0*e0(i)-(a1+k1)*e1(i)-(a2+k2)*e2(i)+w(i));
    y(i+1)=v(i)-e1(i+1);
end
t(N)=N*h;
subplot(131);plot(t,y,'k','LineWidth',1.5)
xlabel('$t/s$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15); % 标注坐标轴
ylabel('$y$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15);
axis([0,5,-0.2,1.2]); % 设置坐标轴上下限
set(gca,'XTick',[0:5:5]); %设置要显示坐标刻度
set(gca,'YTick',[-0.2:0.2:1.2]); %设置要显示坐标刻度
axis_h=gca;  % 当前轴的句柄
set(axis_h,'Fontname','Times New Roman','Fontsize',15,'LineWidth',0.8)
set(gcf,'Position',[200,162,780,350]); % 设置图片大小
grid on;set(gca,'GridLineStyle',':','GridColor','k','GridAlpha',1); % 设置网格线为虚线
text(0.2,-0.1,'$k_0=k_1=k_2=50$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)

%% 第二组参数
k0=30;k1=30;k2=30;
for i=2:N-1
    v(i)=v0(i).*trns(T0,t(i));
    dv(i)=v0(i).*dtrns(T0,t(i));
    ddv(i)=v0(i).*ddtrns(T0,t(i));
    w(i)=ddv(i)+a2*dv(i)+a1*v(i);

    e0(i+1)=e0(i)+h*e1(i);
    e1(i+1)=e1(i)+h*e2(i);
    e2(i+1)=e2(i)+h*(-k0*e0(i)-(a1+k1)*e1(i)-(a2+k2)*e2(i)+w(i));
    y(i+1)=v(i)-e1(i+1);
end
t(N)=N*h;
subplot(132);plot(t,y,'k','LineWidth',1.5)
xlabel('$t/s$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15); % 标注坐标轴
% ylabel('$y$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15);
axis([0,5,-0.2,1.2]); % 设置坐标轴上下限
set(gca,'XTick',[0:5:5]); %设置要显示坐标刻度
set(gca,'YTick',[-0.2:0.2:1.2]); %设置要显示坐标刻度
axis_h=gca;  % 当前轴的句柄
set(axis_h,'Fontname','Times New Roman','Fontsize',15,'LineWidth',0.8)
set(gcf,'Position',[200,162,780,350]); % 设置图片大小
grid on;set(gca,'GridLineStyle',':','GridColor','k','GridAlpha',1); % 设置网格线为虚线
text(0.2,-0.1,'$k_0=k_1=k_2=30$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)

%% 第三组参数
k0=70;k1=70;k2=70;
for i=2:N-1
    v(i)=v0(i).*trns(T0,t(i));
    dv(i)=v0(i).*dtrns(T0,t(i));
    ddv(i)=v0(i).*ddtrns(T0,t(i));
    w(i)=ddv(i)+a2*dv(i)+a1*v(i);

    e0(i+1)=e0(i)+h*e1(i);
    e1(i+1)=e1(i)+h*e2(i);
    e2(i+1)=e2(i)+h*(-k0*e0(i)-(a1+k1)*e1(i)-(a2+k2)*e2(i)+w(i));
    y(i+1)=v(i)-e1(i+1);
end
t(N)=N*h;
subplot(133);plot(t,y,'k','LineWidth',1.5)
xlabel('$t/s$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15); % 标注坐标轴
% ylabel('$y$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15);
axis([0,5,-0.2,1.2]); % 设置坐标轴上下限
set(gca,'XTick',[0:5:5]); %设置要显示坐标刻度
set(gca,'YTick',[-0.2:0.2:1.2]); %设置要显示坐标刻度
axis_h=gca;  % 当前轴的句柄
set(axis_h,'Fontname','Times New Roman','Fontsize',15,'LineWidth',0.8)
set(gcf,'Position',[200,162,780,350]); % 设置图片大小
grid on;set(gca,'GridLineStyle',':','GridColor','k','GridAlpha',1); % 设置网格线为虚线
text(0.2,-0.1,'$k_0=k_1=k_2=70$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)


sgtitle('$a_1=1,a_2=1,T_0=2$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)

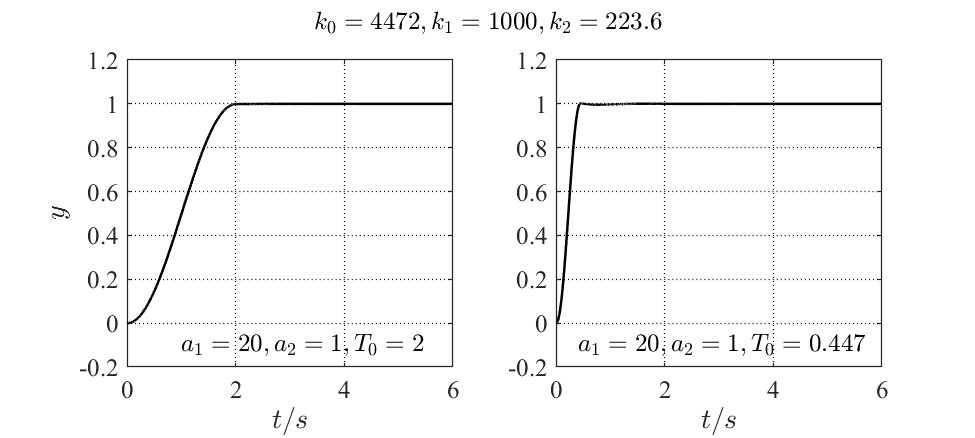

图1-5-6
图1-5-6

图1-5-6 Provided by 张聪玮 @2022-04-14
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
%二阶对象
clc,clear,clf
h=0.001;T=6;N=T/h;
n=1:N;t=n*h;
t0=0; %t0表示阶跃信号突变的时刻
v0=stepfun(t,t0); %输入单位阶跃信号
k0=4472;k1=1000;k2=223.6;
e0=zeros(1,N);e1=zeros(1,N);e2=zeros(1,N);
v=zeros(1,N);dv=zeros(1,N);ddv=zeros(1,N);w=zeros(1,N);
a1=20;a2=1;

%% 第一组对象参数
T0=2;
for i=2:N-1
    v(i)=v0(i).*trns(T0,t(i));
    dv(i)=v0(i).*dtrns(T0,t(i));
    ddv(i)=v0(i).*ddtrns(T0,t(i));
    w(i)=ddv(i)+a2*dv(i)+a1*v(i);

    e0(i+1)=e0(i)+h*e1(i);
    e1(i+1)=e1(i)+h*e2(i);
    e2(i+1)=e2(i)+h*(-k0*e0(i)-(a1+k1)*e1(i)-(a2+k2)*e2(i)+w(i));
    y(i+1)=v(i)-e1(i+1);
end
t(N)=N*h;
subplot(121);plot(t,y,'k','LineWidth',1.5)
xlabel('$t/s$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15); % 标注坐标轴
ylabel('$y$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15);
axis([0,6,-0.2,1.2]); % 设置坐标轴上下限
set(gca,'XTick',[0:2:6]); %设置要显示坐标刻度
set(gca,'YTick',[-0.2:0.2:1.2]); %设置要显示坐标刻度
axis_h=gca;  % 当前轴的句柄
set(axis_h,'Fontname','Times New Roman','Fontsize',15,'LineWidth',0.8)
set(gcf,'Position',[200,162,780,350]); % 设置图片大小
grid on;set(gca,'GridLineStyle',':','GridColor','k','GridAlpha',1); % 设置网格线为虚线
text(1,-0.1,'$a_1=20,a_2=1,T_0=2$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)

%% 第二组对象参数
T0=0.447;
for i=2:N-1
    v(i)=v0(i).*trns(T0,t(i));
    dv(i)=v0(i).*dtrns(T0,t(i));
    ddv(i)=v0(i).*ddtrns(T0,t(i));
    w(i)=ddv(i)+a2*dv(i)+a1*v(i);

    e0(i+1)=e0(i)+h*e1(i);
    e1(i+1)=e1(i)+h*e2(i);
    e2(i+1)=e2(i)+h*(-k0*e0(i)-(a1+k1)*e1(i)-(a2+k2)*e2(i)+w(i));
    y(i+1)=v(i)-e1(i+1);
end
t(N)=N*h;
subplot(122);plot(t,y,'k','LineWidth',1.5)
xlabel('$t/s$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15); % 标注坐标轴
% ylabel('$y$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15);
axis([0,6,-0.2,1.2]); % 设置坐标轴上下限
set(gca,'XTick',[0:2:6]); %设置要显示坐标刻度
set(gca,'YTick',[-0.2:0.2:1.2]); %设置要显示坐标刻度
axis_h=gca;  % 当前轴的句柄
set(axis_h,'Fontname','Times New Roman','Fontsize',15,'LineWidth',0.8)
set(gcf,'Position',[200,162,780,350]); % 设置图片大小
grid on;set(gca,'GridLineStyle',':','GridColor','k','GridAlpha',1); % 设置网格线为虚线
text(0.4,-0.1,'$a_1=20,a_2=1,T_0=0.447$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)



sgtitle('$k_0=4472,k_1=1000,k_2=223.6$','Interpreter','Latex','Fontname','Times New Roman','Fontsize',15)
